Philips BDP 2800 BDP 2850 Blu Ray Player Service Manual

Description

Philips BDP 2800 BDP 2850 Blu Ray Player Service Manual

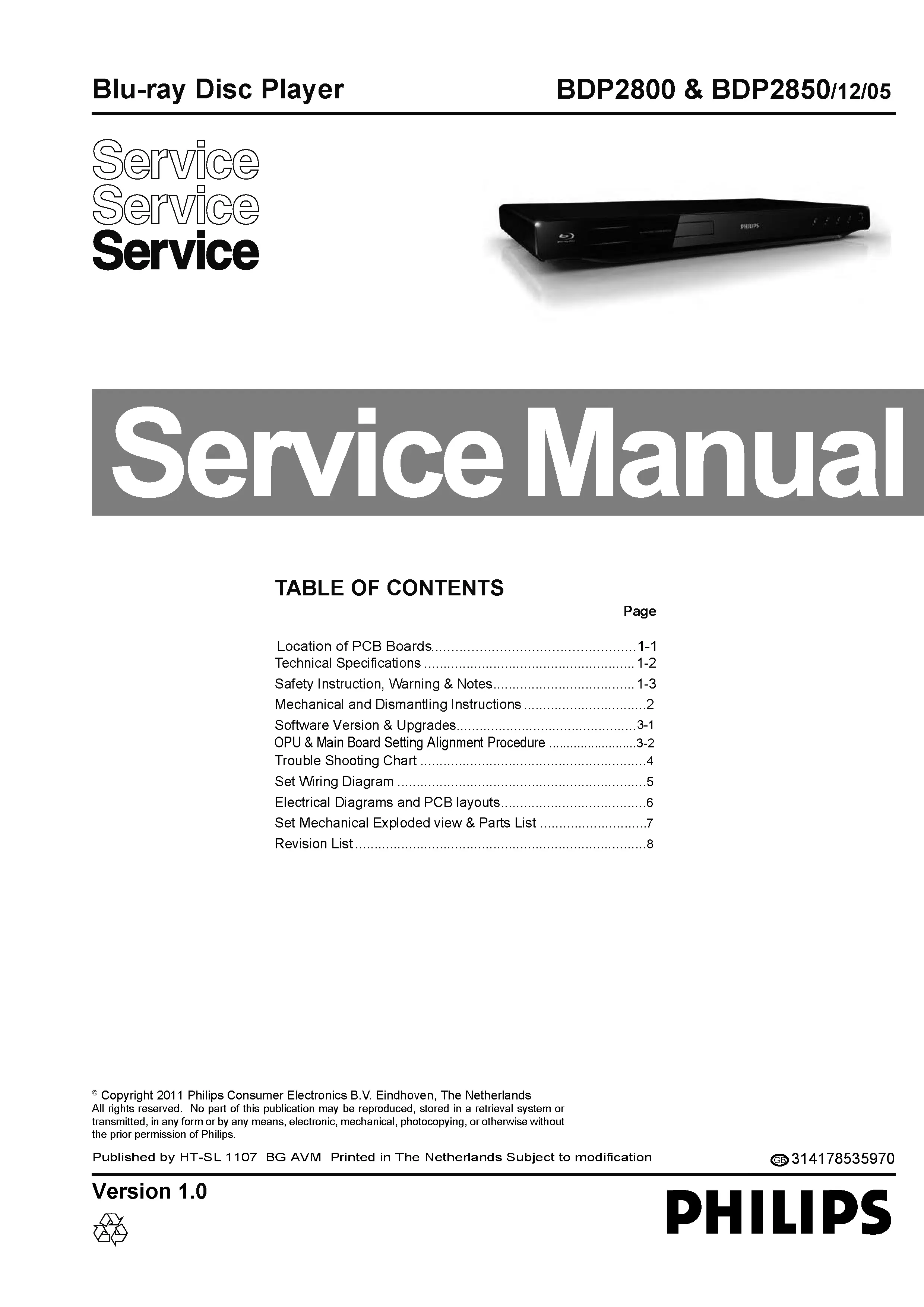

Servicing the Philips BDP 2800 BDP 2850 calls for more than a user guide; this manual brings together the repair notes, diagrams and troubleshooting material for this blu ray player. The documentation is based on the Philips service material for BDP2850/12/05, with the device type, contents and service terminology checked against the supplied cover or manual front matter.

Manual Specifications

• Brand: Philips
• Model: BDP 2800 BDP 2850
• Model covered: BDP2850/12/05
• Product type: Blu Ray Player
• Format: PDF file
• Pages: 42

Instant Download

After checkout, the Philips BDP 2800 BDP 2850 service manual is available as a digital download so you can start using the repair information straight away. The file is supplied in the format listed above and can be kept as a workshop reference for future diagnostics.

Manual Contents

• Technical Specifications: sets out the video, audio and system details before fault tracing begins.
• Safety Instruction, Warning & Notes: collects the laser, ESD and service precautions for bench work.
• QSG and DFU Instruction: keeps the user-facing setup references close to the service notes.
• Mechanical and Dismantling Instructions: shows how the cabinet, loader and assemblies are opened for repair.
• Software Version & Upgrades: covers firmware checks, upgrade handling and region-code related service work.
• Trouble Shooting Chart: provides a guided route through playback, power and control symptoms.
• Set Wiring Diagram: maps the internal harnesses and board-to-board connections.
• Electrical Diagrams and PCB Layouts: supports signal tracing and component-level board checks.
• Set Mechanical Exploded View & Parts List: links cabinet assemblies and replacement references.
• Revision List: records manual revision information for archive control.

Common Problems Covered

Use the diagnostic sections when the unit will not start correctly, fails to read media, loses output, shows control-panel symptoms, needs firmware verification or requires circuit and PCBA inspection. The Philips BDP 2800 BDP 2850 documentation gives the diagnostic context for this blu ray player, so the checks stay tied to the actual circuit, wiring and mechanism layout instead of a generic player repair guide.

Technician Reference

Technicians can use it both during active fault finding and later as a component location reference when comparing board layouts, wiring and mechanical assemblies.

Who Is This Manual For?

Use it when you need service-level Philips documentation for diagnostics, dismantling, board checks and future repair records.

More Philips Service Manuals

Looking for another Philips disc player manual? Explore the Philips Blu Ray DVD manual collection.

Need Help Finding The Correct Manual?

If the model suffix is unclear, send us a message and we can help match the Philips manual to your unit.
