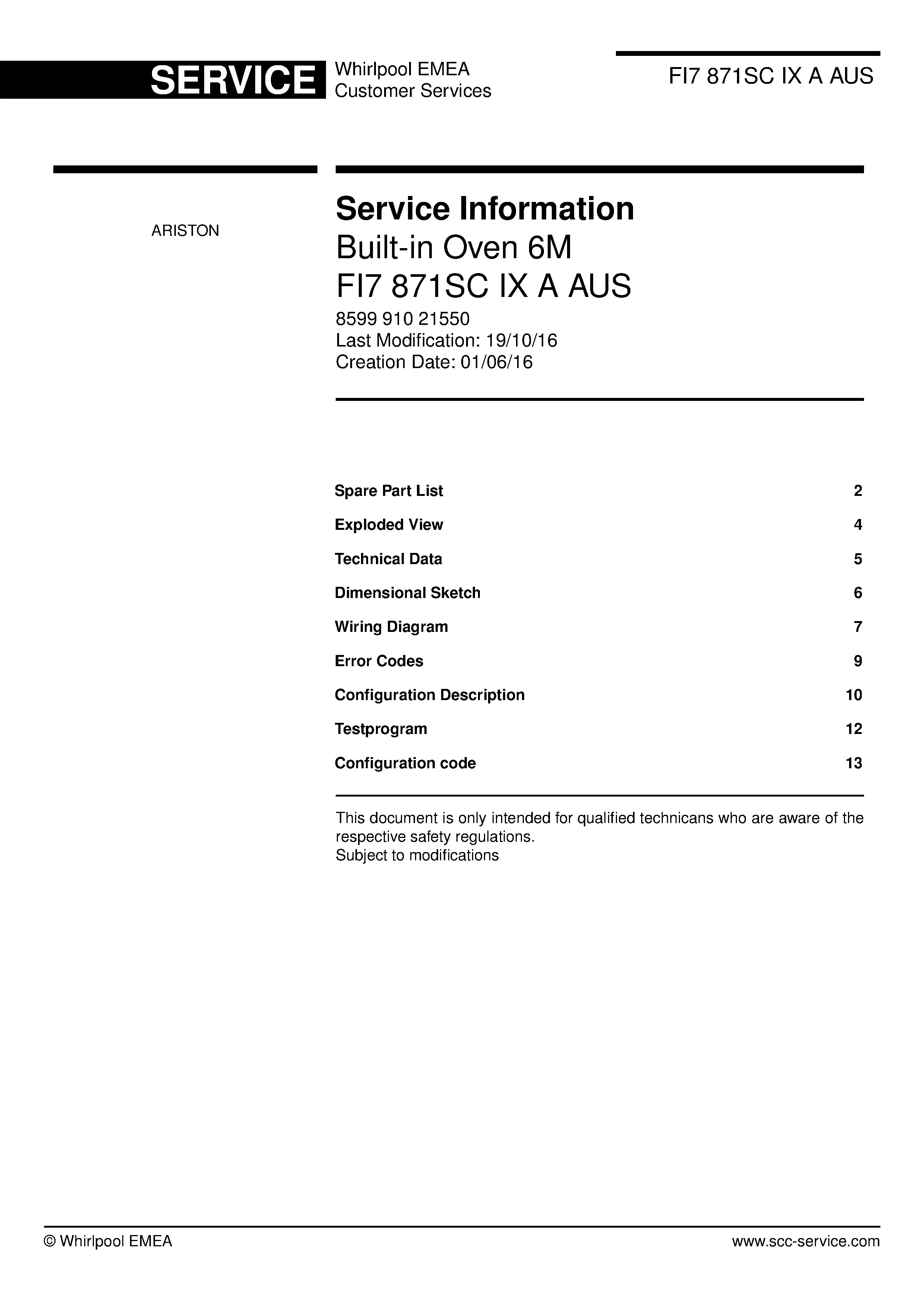

Ariston FI7 871SC IX A AUS Built-in Oven Service Manual

Description

Ariston FI7 871SC IX A AUS Built-in Oven Service Manual

The Ariston FI7 871SC IX A AUS oven has its own service reference and appliance code. This original manufacturer manual brings together the assembly information, electrical drawings, error-code material and test-program documentation for that precise designation.

Manual Specifications

• Brand: Ariston
• Model: FI7 871SC IX A AUS
• Product Type: Built-in Oven
• Format: PDF
• Pages: 24
• Manufacturer Service Code: 859991021550

Instant Download

After payment, the PDF is available to download for workshop reference and selective printing.

Manual Contents

• Spare Part List: Matches the oven components to their service references, helping distinguish assemblies before a replacement is ordered.
• Exploded View: Maps the assembly structure visually, helping the repairer connect a component position with its corresponding service reference.
• Technical Data: Sets out the documented electrical ratings and technical particulars used to check the appliance identification and service requirements.
• Dimensional Sketch: Shows the appliance dimensions in drawing form for checking the equipment layout and installation space.
• Wiring Diagram: Provides the electrical layout for locating connections and following the circuits associated with the reported symptom.
• Error Codes: Explains the listed fault indications so an error can be interpreted within the oven’s own service documentation.
• Configuration Description: Describes the control configuration reference that should be consulted when reviewing the oven’s service settings.
• Testprogram: Explains the documented service testing routine, helping organize diagnostic checks rather than relying on trial and error.
• Configuration code: Gives the appliance configuration-code reference for checking the control setup against the manufacturer publication.

Common Problems Covered

For the Ariston FI7 871SC IX A AUS, the error-code and test references support assessment of reported faults, control behavior and an oven that does not heat as expected. Use the documented codes and service checks alongside the wiring diagram to investigate the symptom; these sections provide technical evidence rather than a universal repair answer.

Technician Reference

Use the parts references together with the drawings, keeping the appliance service code in the job record. This helps tie observations and replacement decisions to the correct oven rather than to a neighboring model in the range.

Who Is This Manual For?

This publication supports service professionals and experienced repairers. For owners, it provides a technical archive for understanding component locations and discussing symptoms with a technician using the manufacturer’s own reference.
