Kenmore 795 78412 78413 78416 78419 Refrigerator Service Manual – Suffix 801

Description

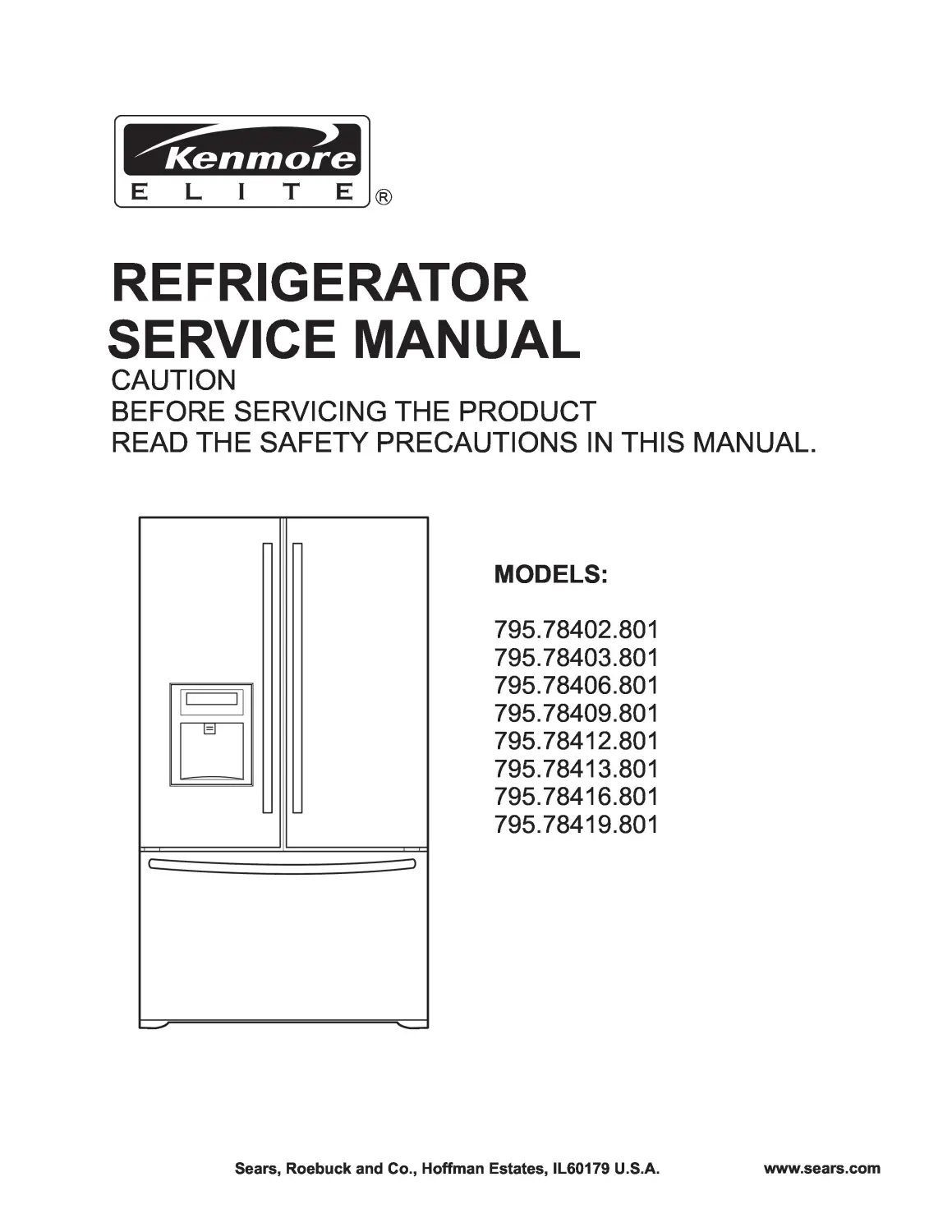

Kenmore 795 78412 78413 78416 78419 Refrigerator Service Manual – Suffix 801

Introduction

Correct suffix matching matters before diagnosing or ordering parts for the Kenmore 795 78412 78413 78416 78419. This french door refrigerator service manual is written for the 801 model variant and brings the relevant repair procedures into one technical reference.

Manual Specifications

• Brand: Kenmore
• Appliance Type: French Door Refrigerator
• Model Family: 795 78412 78413 78416 78419
• Model Suffix: 801
• Language: English
• Format: PDF
• Pages: 55

Instant Download

The manual is supplied as an instant PDF download, so the technical information is available as soon as checkout is complete.

Manual Contents

• Safety precautions
• Specifications
• Parts Identification
• Disassembly instructions
• Adjustment
• Circuit Diagram
• Troubleshooting
• Error Codes
• PCB Picture
• Component testing information
• Compressor Troubleshooting
• Ice maker Troubleshooting
• Description of function and circuit of MICOM
• Exploded views

Because this document is assigned to suffix 801, manuals for other suffix versions should not be assumed to contain identical component, wiring, or specification information.

Common Problems Covered

This suffix 801 reference helps narrow down symptoms such as weak cooling, uneven cabinet temperature, frost accumulation, fan noise, defrost problems, sensor failures, control issues, and electrical malfunctions in the Kenmore 795 78412 78413 78416 78419.

Technician Reference

The Kenmore 795 78412 78413 78416 78419 suffix 801 manual gives technicians a consistent reference for symptom analysis, disassembly planning, electrical checks, component testing, and final operating verification.

Who Is This Manual For?

It is designed for professional appliance repair work and advanced maintenance by users who have matched the full model code, including suffix 801.

More Brand Service Manuals

For additional Kenmore refrigerator repair documents, explore Kenmore Refrigerator Service Manuals and confirm the complete model number before ordering.

Need Help Finding The Correct Manual?

If the rating label does not end in this exact suffix, contact us before purchase so we can help check the correct service manual.
