LG LCS1413SW / LCS1413SB Microwave Oven Service Manual

Description

LG LCS1413SW / LCS1413SB Microwave Oven Service Manual

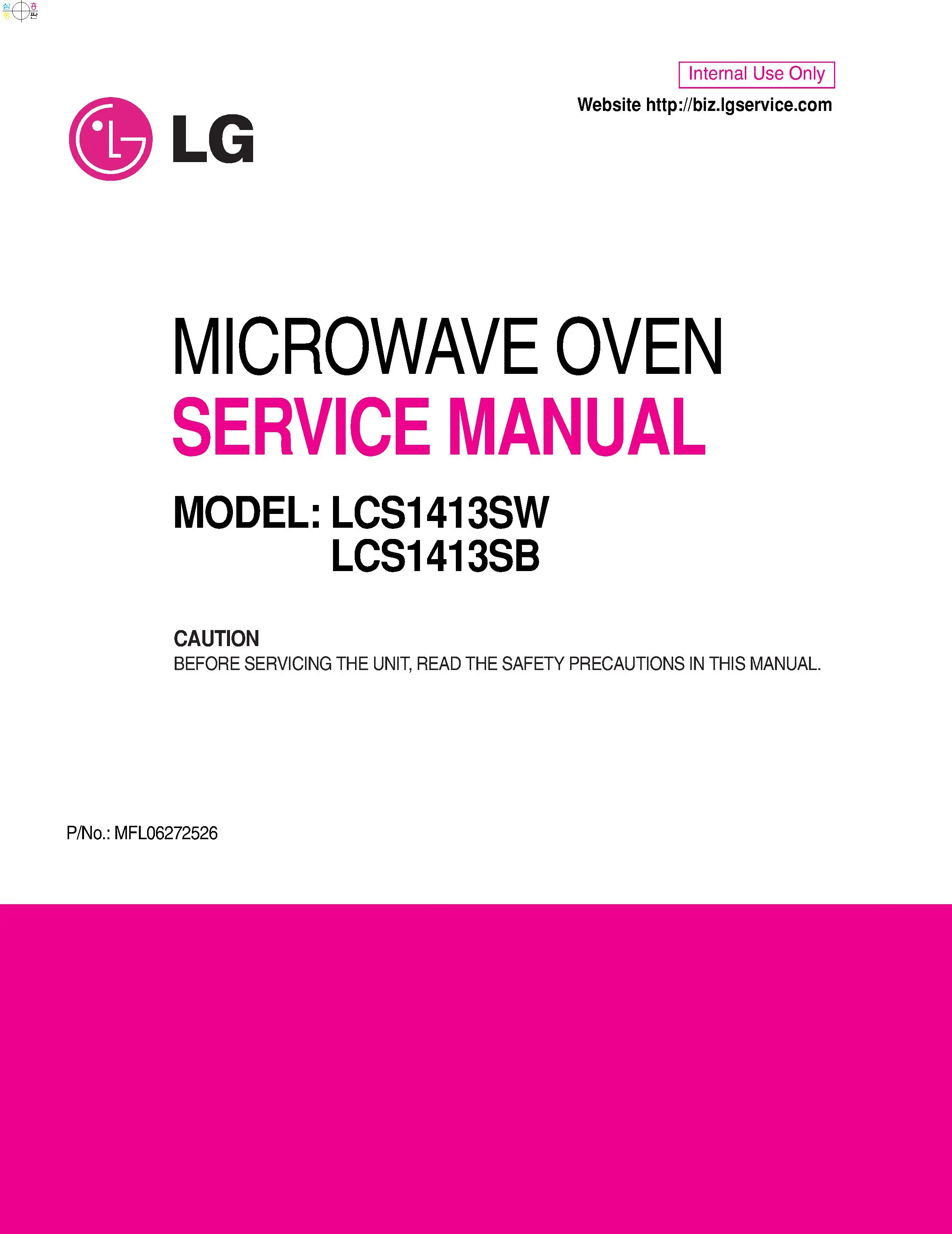

An inspection of the LG LCS1413SW / LCS1413SB microwave oven is easier to document with the matching manufacturer publication. This original service manual connects the component references with the electrical and technical material listed below.

Manual Specifications

• Brand: LG
• Models Covered: LCS1413SW, LCS1413SB
• Product Type: Microwave Oven
• Format: PDF
• Pages: 33

Instant Download

Download the PDF after purchase and keep it with the appliance records, ready to consult during workshop assessment or print for reference.

Manual Contents

• Safety Precautions: Sets out the manufacturer precautions for qualified service personnel.
• Specifications: Records the appliance ratings and technical reference values.
• Cautions: Identifies additional cautions to observe during servicing.
• Installation: Explains the documented installation requirements and appliance setup.
• Operating Instructions: Describes controls, features and the normal operating sequence.
• Schematic Diagram: Provides the electrical schematic for tracing component connections.
• Circuit Description: Explains the circuit operation alongside the electrical drawing.
• Service Information: Collects the manufacturer service guidance and reference procedures.
• Tools and Measuring Instruments: Identifies the tools and instruments specified for service checks.
• Microwave Leakage Test: Details the manufacturer procedure for checking microwave energy leakage.
• Power Output Measurement: Explains the documented measurement of microwave heating output.
• Disassembly and Adjustment: Covers component access, dismantling and the specified adjustments.
• Interlock Continuity Test: Provides the documented continuity checks for the interlock switches.
• Component Testing: Supplies the component test procedures used during fault assessment.
• Troubleshooting: Organizes fault checks around the symptoms described by LG.
• Exploded View: Maps the illustrated assemblies and their component positions.

Common Problems Covered

The troubleshooting and component tests support investigation of a microwave that does not heat or fails to operate normally. Use the door-interlock checks and electrical references to assess the documented symptom before identifying a component for further attention.

Technician Reference

Use the electrical drawings together with the component procedures and assembly references. Record the full appliance identification beside the workshop findings to keep the diagnosis tied to the model being serviced.

Who Is This Manual For?

This publication supports service professionals and experienced repairers. For owners, it provides a technical archive for understanding component locations and discussing symptoms with a technician using the manufacturer’s own reference.
