Onkyo TX-SR353 AV Receiver Service Manual

Description

Introduction

Built for bench repair, the Onkyo TX-SR353 AV Receiver Service Manual gives audio technicians the factory reference needed for circuit analysis, diagnostics, and accurate servicing.

Written for professional audio repair rather than casual setup, this manual helps trace faults through the Onkyo TX-SR353 using factory repair information, measured checks, and model-specific service references.

Manual Specifications

• Brand: Onkyo
• Appliance Type: AV Receiver
• Models Covered: TX-SR353
• Format: PDF
• Pages: 50
• Language: English

Instant Download

This Onkyo TX-SR353 service document is delivered digitally after purchase so it can be used at the bench during inspection, repair, and final testing.

Manual Contents

Although the contents list is concise, the technical value of the Onkyo TX-SR353 manual is in the electrical documentation. The schematic material supports the kind of signal-path work, voltage comparison, and circuit-level reasoning that professional audio repair depends on.

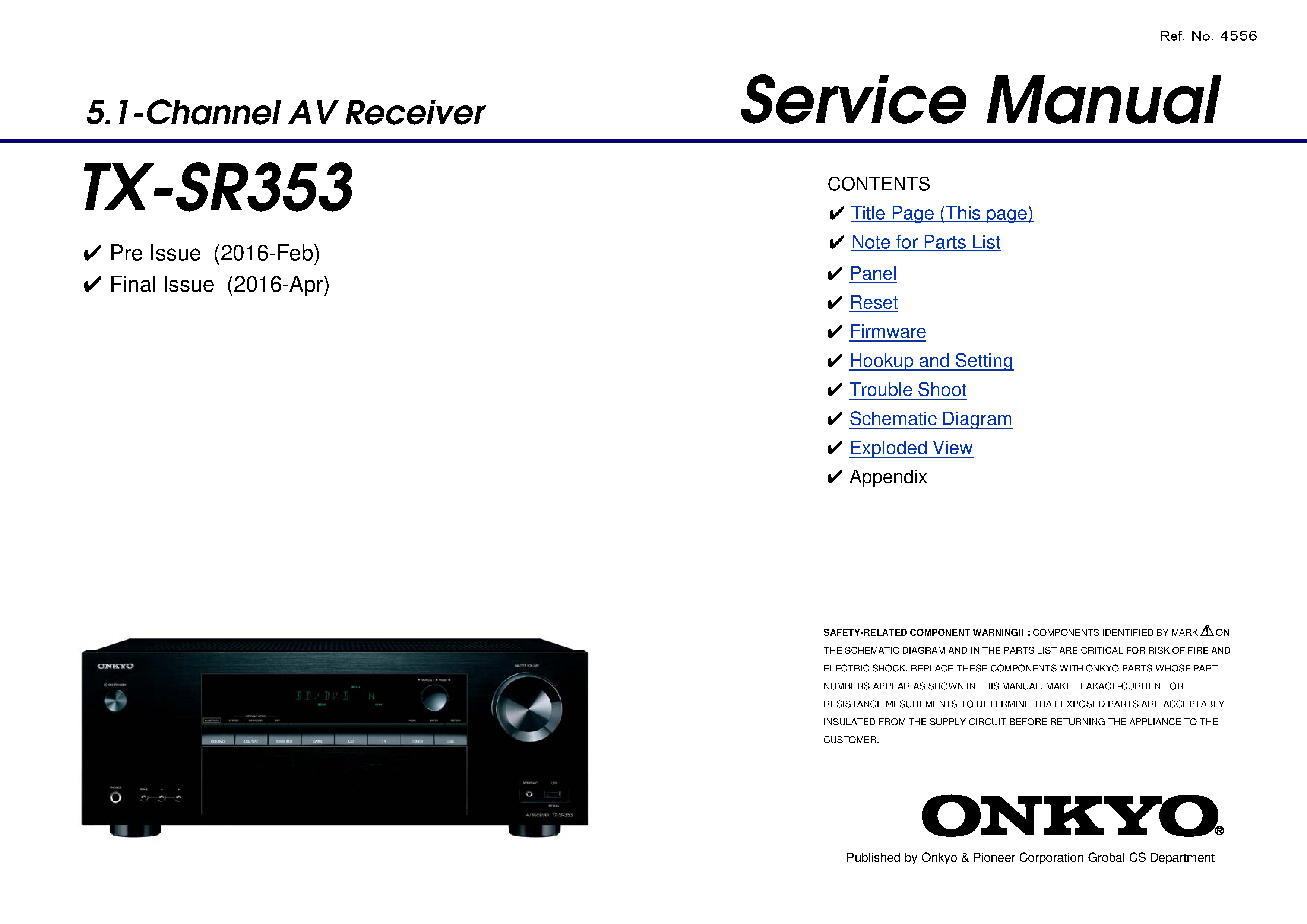

Title Page (This page): The title page identifies the TX-SR353 service document and helps technicians confirm that the manual matches the unit before any diagnostic work begins.

Note for Parts List: The parts-list notes explain how Onkyo identifies replacement parts, critical safety components, and ordering references used during professional repair.

Panel: The panel section helps locate controls, terminals, indicators, and service-relevant front or rear panel details during functional checks.

Reset: Reset information supports controlled restoration of factory states after logic faults, setting corruption, or post-repair verification.

Model and Destination: Model and destination data helps verify regional variants, voltage versions, and parts differences before component replacement.

Firmware: Firmware procedures provide official software service guidance for update-related faults, logic-board work, and post-repair confirmation.

Hookup and Setting: Hookup and setting guidance helps reproduce operating conditions for signal tests, input checks, and customer-symptom verification.

Trouble Shoot: Troubleshooting guidance directs fault isolation for power, audio, HDMI, network, and control symptoms without unnecessary board replacement.

Disassembly: Disassembly instructions show the correct access path for boards, panels, heatsinks, and internal assemblies while reducing service damage risk.

Schematic Diagram: Schematic diagrams are the core repair reference for the TX-SR353, supporting signal tracing, voltage verification, circuit analysis, and component-level diagnostics.

Exploded View: Exploded view drawings help confirm mechanical assembly order, cabinet hardware, and replacement part positions before reassembly.

Appendix: The appendix collects supporting reference information used when the main repair procedure requires additional model data.

Common Problems Covered

Technicians commonly use the Onkyo TX-SR353 Service Manual when investigating faults such as:

• unit will not power on or enters protection mode
• no audio output or one speaker channel missing
• HDMI switching, audio dropouts, or DSP failures
• network connectivity or firmware-related faults
• distorted sound caused by amplifier or power supply stages
• display, input selector, or control-board problems

Technician Reference

For the Onkyo TX-SR353, this documentation supports professional service technicians, electronics engineers, authorized service centres, and audio repair specialists who need reliable factory data for board-level diagnosis, signal tracing, and safe component replacement.

Who Is This Manual For?

This manual is intended for professional repair workshops, independent technicians, electronics enthusiasts, advanced DIY users, and audio equipment restorers with the tools and experience required to service Onkyo audio equipment safely.

More Onkyo Service Manuals

Browse more Onkyo service manuals for related receivers, amplifiers, processors, and audio components.

Need Help Finding The Correct Manual?

If you are unsure whether this is the correct Onkyo manual for your unit, contact Zeus Manuals and include the full model number from the rear label.
