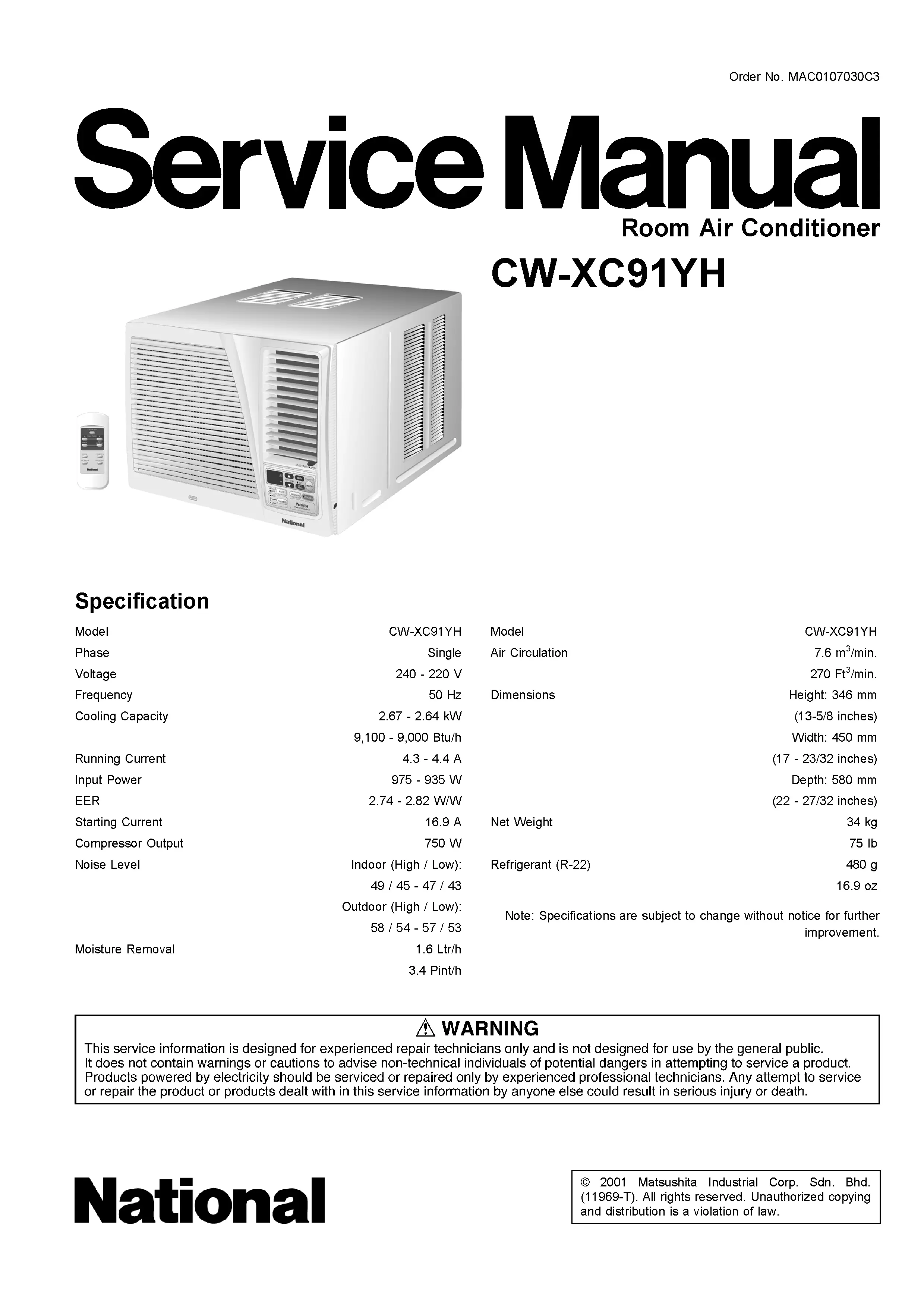

Panasonic CW-XC91YH Air Conditioner Service Manual

Description

Follow the original equipment documentation with the Panasonic CW-XC91YH air conditioner service manual. The included wiring references and operating control information give technicians a reference for diagnosis, service access and repair preparation.

Manual Specifications

• Brand: Panasonic
• Product: Air Conditioner
• Models covered: CW-XC91YH
• Manual: Original manufacturer Service Manual
• Format: PDF
• Language: English
• Pages: 28

Instant Download

Receive the PDF service manual as an instant download after purchase.

Manual Contents

• 1. Functions: Explains the available operating functions and how the system responds to commands.
• 2. Dimensions: Shows unit dimensions for access planning and checks against the installation layout.
• 3. Refrigeration Cycle Diagram: Maps the refrigerant circuit so technicians can trace the cycle during diagnosis.
• 4. Block Diagram: Shows how the main functional blocks relate when tracing system operation.
• 5. Wiring Diagram: Details electrical connections for tracing wiring and checking the equipment circuits.
• 6. Air Conditioner Performance Evaluation: Explains the evaluation of air conditioner performance to support checks of operating results.
• 7. Troubleshooting Guide: Organises diagnostic checks to help technicians trace reported faults to their causes.
• 8. Operation Details: Explains operating sequences so abnormal behaviour can be compared with normal control operation.
• 9. Operating Instructions: Describes the operating controls and settings needed to establish normal user operation.
• 10. How To Install: Sets out fitting instructions useful when checking installation-related operating problems.
• 11. Care and Maintenance: Describes the care and maintenance procedures associated with keeping the equipment in service.
• 12. Service Information: Presents the manufacturer’s servicing reference material for work on the covered equipment.
• 13. Exploded View: Illustrates component positions and assembly relationships to help identify parts during dismantling.
• 14. Replacement Parts List: Lists replacement part references for identifying the components required for a repair.
• 15. Electronic Circuit / Indicator Complete: Shows the indicator circuit reference information for investigating the display and indication circuitry.
• 16. Electronic Circuit / Main: Documents the main electronic circuit used when investigating the unit’s control circuitry.
• 17. Technical Data: Supplies reference data for comparing measured operation with the manufacturer’s published information.
• 18. Electronic Circuit Diagram: Provides detailed electronic circuit schematics for tracing signals and investigating control faults.

Common Problems Covered

• Operating faults: follow the manual’s troubleshooting guidance to organise checks and investigate the reported behaviour.
• Electrical connection and circuit problems: consult the wiring or circuit diagrams when tracing the affected connections.
• Unexpected operating responses: compare the control documentation with the unit’s observed operation before planning a repair.

Technician Reference

Identify the covered model, consult the relevant operating or diagnostic section, then use the assembly and part references when preparing component work. Follow the manufacturer’s service instructions throughout the repair.

Who Is This Manual For?

For professional HVAC technicians and repair workshops servicing the Panasonic CW-XC91YH air conditioner.
