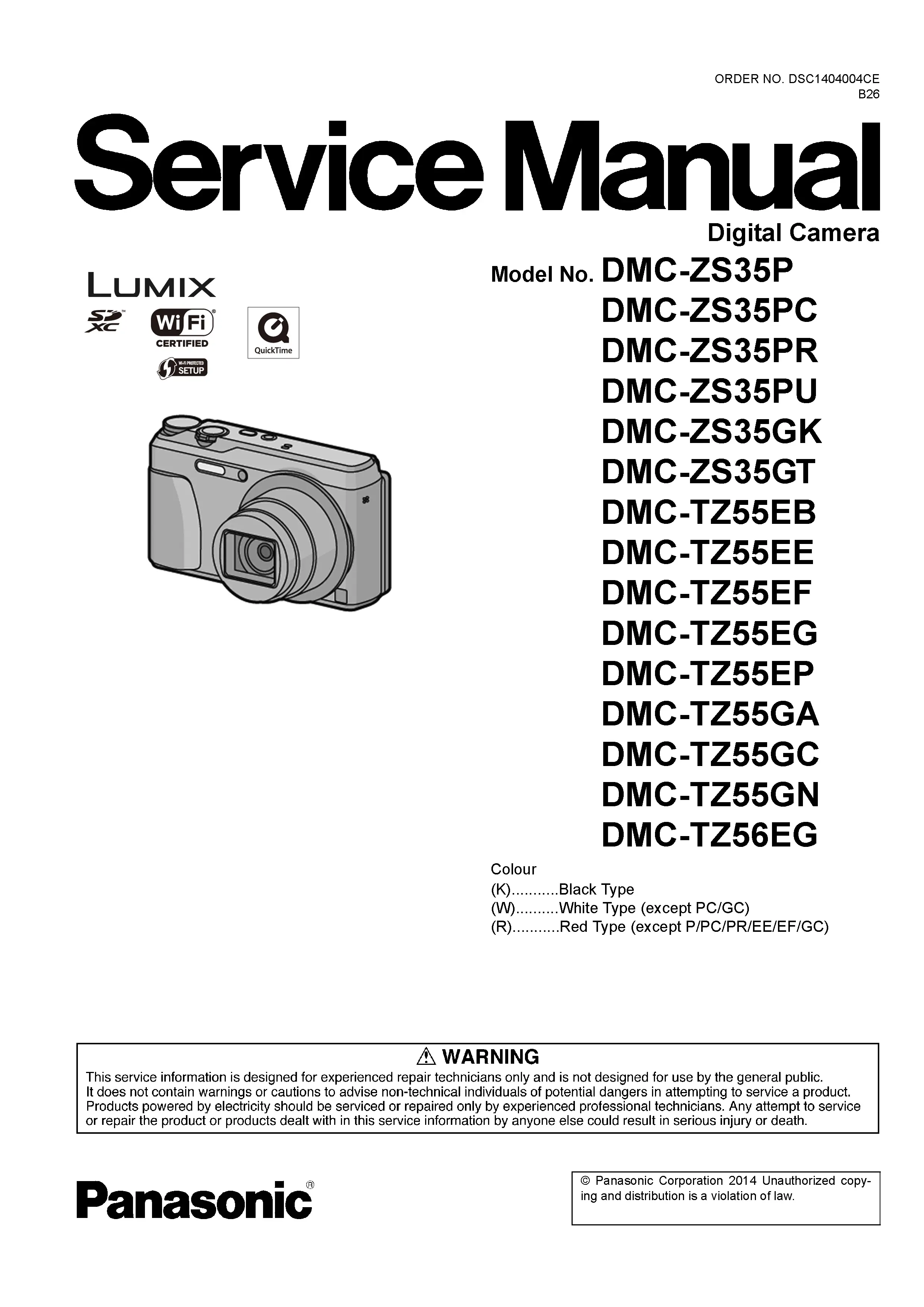

Panasonic Lumix DMC ZS35 TZ55 TZ56 Digital Camera Service Manual

Panasonic Lumix DMC ZS35 TZ55 TZ56 Digital Camera Service Manual

For bench work on the Panasonic Lumix DMC ZS35 TZ55 TZ56 digital camera, this service manual supplies the technical detail required to inspect assemblies, replace parts and complete calibration checks.

Its strongest use is during controlled teardown, diagnostic confirmation and final calibration. This reference is intended for a bench technician, with attention to component-level repair, electronic diagnostics, image sensor servicing, autofocus systems, optical alignment, shutter mechanisms, flash circuitry, PCB servicing, ribbon cable replacement and calibration procedures.

Manual Specifications

• Brand: Panasonic Lumix
• Model: DMC ZS35 TZ55 TZ56
• Product Type: Digital Camera
• Manual Type: Factory Service Manual
• Pages: 55
• File Format: PDF

Instant Download

After checkout, the DMC ZS35 TZ55 TZ56 service manual is supplied as an instant download so the repair information can be used immediately at the bench. The file name and page count match this exact Panasonic Lumix digital camera listing.

Manual Contents

This Panasonic manual keeps the exploded views and replacement parts catalog, but it does not include block diagram, schematic diagram or printed circuit board view chapters.

• Safety Precautions: Documents the warnings that matter before working around battery, flash capacitor and power circuitry.
• Service Warnings and ESD Protection: Covers electrostatic discharge control and service cautions for boards, image sensor circuits and flexible printed circuits.
• Service Navigation: Provides the roadmap for using Panasonic’s service information without losing time between diagnostic and mechanical sections.
• Technical Specifications: Documents the factory specification set so exposure, imaging, lens and interface faults can be judged against the correct model.
• Camera Controls and Component Locations: Shows where the user controls, internal modules and serviceable assemblies sit in relation to each other.
• Service Mode: Helps verify electronic and mechanical operation after replacement parts have been fitted.
• Error Code Diagnostics: Interprets camera error information so lens, sensor, communication and control faults can be traced to the right area.
• Service Fixtures and Special Tools: Shows which tools are expected for factory servicing, helping avoid damage to lens barrels, covers and delicate connectors.
• Disassembly and Assembly Instructions: Shows the mechanical service path needed to reach failed assemblies while reducing the risk of connector or ribbon damage.
• Lens Disassembly Procedures: Shows the correct approach to the lens unit when gears, guides, shutters or drive sections need inspection.
• Lens Assembly Procedures: Supports smooth lens operation after parts have been cleaned, repaired or replaced.
• CCD / CMOS Sensor Service: Covers imaging-sensor handling, cleaning awareness and the service steps needed around the sensor and optical path.
• Focus Motor Service: Supports repair of hunting, no-focus and stuck-focus conditions by identifying the motor and drive sections involved.
• Measurements and Adjustments: Provides the measurable targets needed to finish the repair with repeatable results instead of visual judgement alone.
• Maintenance Procedures: Supports preventive service while the camera is already disassembled for another repair.
• Cleaning Instructions: Shows how to deal with contamination without damaging coatings, flex cables or sensor-adjacent parts.
• Exploded Views: Breaks the camera into assemblies and subassemblies so mechanical order, screw locations and replacement parts can be checked.
• Replacement Parts List Catalog: Helps confirm the correct replacement part before ordering, reducing mistakes caused by regional variants or similar assemblies.

Common Problems Covered

Use this manual when diagnosing faults that need internal access, service-mode checks, measurements or confirmed replacement parts.

• Camera will not power on
• Travel zoom lens will not extend or retract
• Zoom mechanism noise, binding or position errors
• Autofocus not operating correctly
• Optical Image Stabilizer faults
• Blurry images or poor image quality
• LCD or viewfinder display faults where fitted
• Flash not firing
• Memory card detection failures
• USB charging or communication problems

Technician Reference

The DMC ZS35 TZ55 TZ56 manual is useful when diagnosis has to move from a symptom to a verified assembly. It supports factory servicing work such as checking power lines, inspecting flexible printed circuits, confirming lens drive operation, servicing CCD or CMOS sensor areas, tracing flash and exposure circuits, and completing precision adjustments after reassembly.

Who Is This Manual For?

This manual is for professional camera technicians, electronics repair shops, refurbishers and experienced Lumix owners who need the correct technical reference for matching parts, procedures and adjustments to the exact camera model. It is not a user guide; it is a factory service document for careful digital camera repair.

More Panasonic Lumix Digital Camera Service Manuals

For a workshop library, the Panasonic Lumix category keeps the related digital camera service manuals in one place.

Need Help Finding The Correct Manual?

If there is any doubt about the exact model, use the contact page before relying on the manual at the bench.
