Philips BDP 5200 Blu Ray Player Service Manual

Description

Philips BDP 5200 Blu Ray Player Service Manual

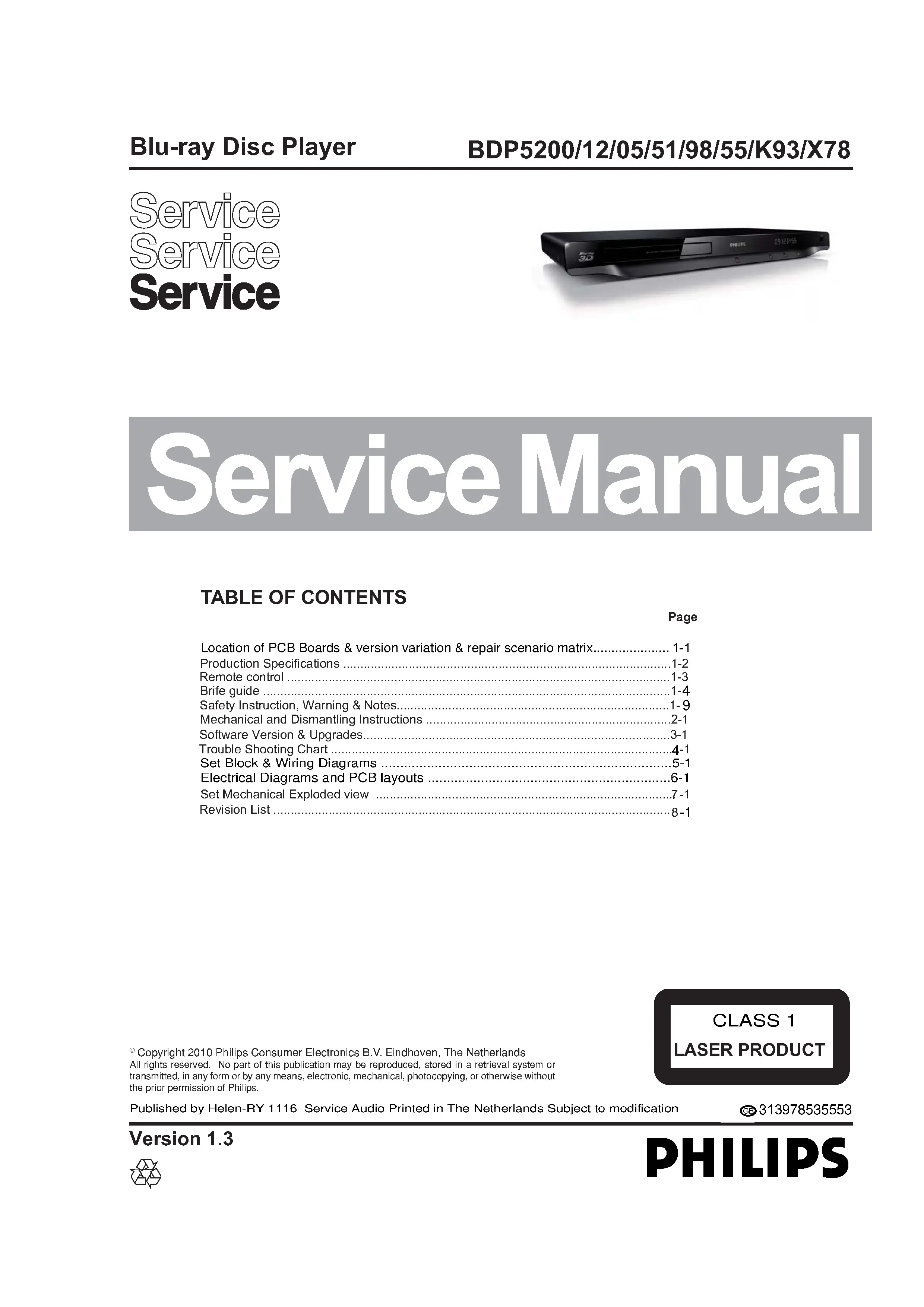

For technicians working on the Philips BDP 5200, this blu ray player service manual gives the model-specific information needed to move from symptom checking to board and mechanism service. The documentation is based on the Philips service material for BDP5200/12/05/51/98/55/K93/X78, BDP5200/12/51, BDP5200/05, BDP5200/98/55/K93/X78, with the device type, contents and service terminology checked against the supplied cover or manual front matter.

Manual Specifications

• Brand: Philips
• Model: BDP 5200
• Model covered: BDP5200/12/05/51/98/55/K93/X78, BDP5200/12/51, BDP5200/05, BDP5200/98/55/K93/X78
• Product type: Blu Ray Player
• Format: PDF file
• Pages: 39

Instant Download

After checkout, the Philips BDP 5200 service manual is available as a digital download so you can start using the repair information straight away. The file is supplied in the format listed above and can be kept as a workshop reference for future diagnostics.

Manual Contents

• Location of PCB Boards and Version Variation: identifies the board positions, version spread and repair scenario matrix.
• Production Specifications: summarises the player specification and connection information.
• Brief Guide: adds compact operating context for confirming reported behaviour.
• Mechanical and Dismantling Instructions: walks through cabinet and module access.
• Software Version & Upgrades: documents firmware checking and upgrade steps.
• Trouble Shooting Chart: narrows power, disc, output and control faults in service order.
• Set Block & Wiring Diagrams: combines signal flow and wiring references.
• Electrical Diagrams and PCB Layouts: gives board-level diagrams for electronic diagnosis.
• Set Mechanical Exploded View: shows the mechanical build-up of the player.
• Revision List: keeps the service document version traceable.

Common Problems Covered

Use the diagnostic sections when the unit will not start correctly, fails to read media, loses output, shows control-panel symptoms, needs firmware verification or requires circuit and PCBA inspection. The Philips BDP 5200 documentation gives the diagnostic context for this blu ray player, so the checks stay tied to the actual circuit, wiring and mechanism layout instead of a generic player repair guide.

Technician Reference

For workshop use, the Philips BDP 5200 manual works well as a bench reference because the contents move from identification and safety into practical disassembly, diagnosis and board documentation.

Who Is This Manual For?

It is intended for repair shops, electronics technicians, refurbishers and owners who maintain Philips disc players with proper service data instead of guesswork.

More Philips Service Manuals

Looking for another Philips disc player manual? Explore the Philips Blu Ray DVD manual collection.

Need Help Finding The Correct Manual?

If the model suffix is unclear, send us a message and we can help match the Philips manual to your unit.
