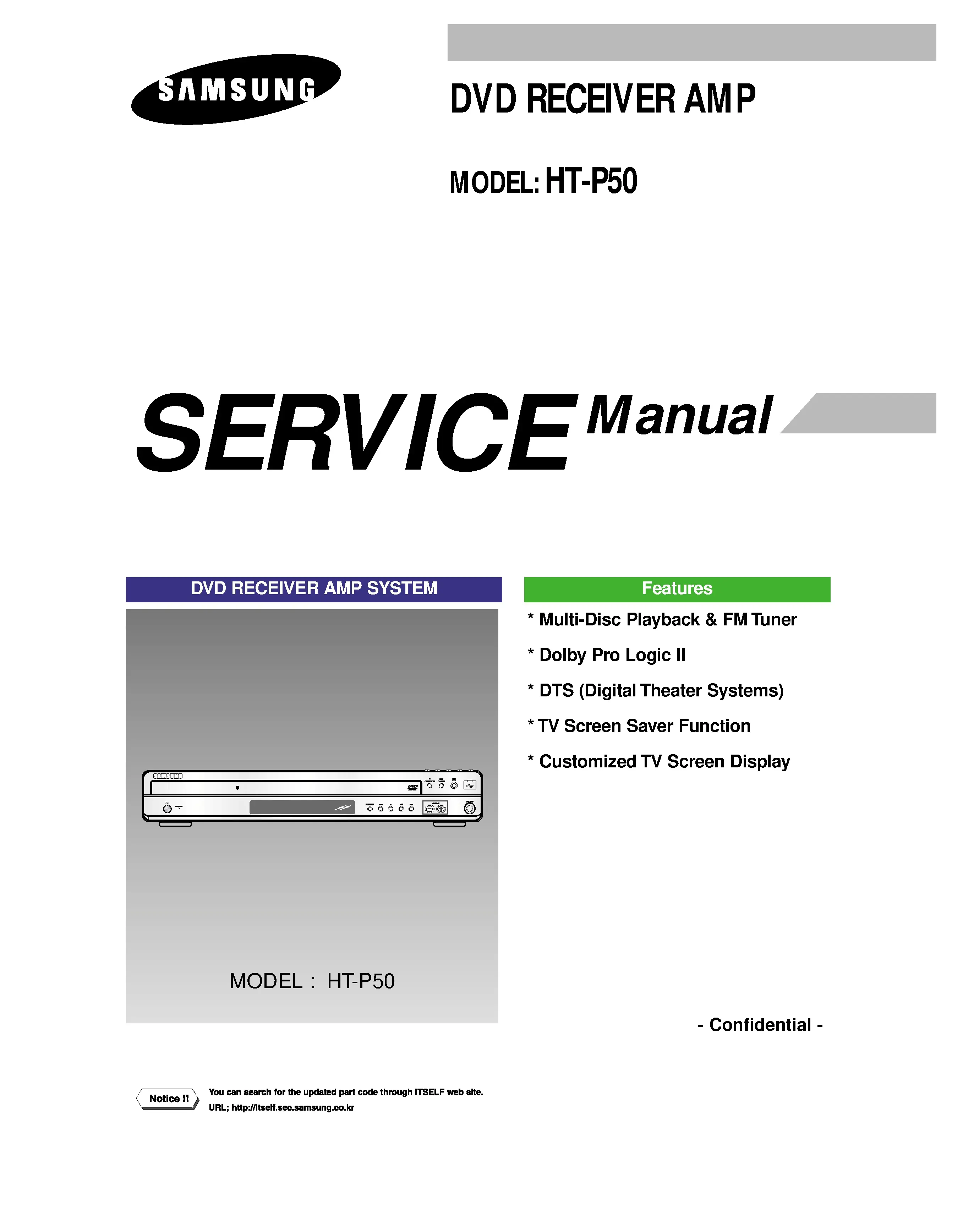

Samsung HT-P50 DVD Receiver AMP Service Manual

Description

Samsung HT-P50 DVD Receiver AMP Service Manual

Repair work on the Samsung HT-P50 DVD Receiver AMP benefits from a factory reference that follows the exact model rather than a nearby-looking system. It is intended for repair work where the correct diagrams, parts references, disassembly guidance, and troubleshooting flow matter.

Manual Specifications

• Brand: Samsung
• Model: HT-P50
• Product Type: DVD Receiver AMP
• Format: PDF in a ZIP file
• Pages: 80

Instant Download

After purchase, the file is available immediately from your order download area, so the service information can be used while the unit is still on the bench. Download access is direct after purchase, giving you the manual when the unit is still in front of you.

Manual Contents

• Precautions: sets out the handling, safety, and service precautions to check before opening the unit or testing live circuits.
• Product Descriptions: identifies the system layout and gives the technician a quick reference for the Samsung model being serviced.
• Product Functions: explains the operating sections that need to be understood before fault isolation begins.
• Adjustments: supports the alignment and setup checks required after repair work or board replacement.
• How to Disassemble: walks through the disassembly order so covers, boards, drives, and speaker-related assemblies can be accessed correctly.
• Troubleshooting: provides guided checks for isolating power, audio, disc, protection, and signal-path faults.
• Exploded View & Parts List: shows how assemblies fit together and helps identify replacement parts during a repair.
• Electrical Parts List: supports component-level identification when checking or replacing electrical parts.
• Block Diagram: maps the main signal and power sections so a fault can be narrowed down by circuit area.
• Wiring Diagram: helps verify harness routing, connector positions, and inter-board wiring before reassembly.
• PCB Diagram: locates components and test points on the circuit boards for practical bench diagnosis.
• Schematic Diagram: gives the circuit detail needed for voltage tracing, continuity checks, and board-level repair.
• Circuit Description: explains how the major circuits operate, which helps when symptoms do not point to a single failed part.

Common Problems Covered

For the Samsung HT-P50 DVD Receiver AMP, the troubleshooting material is useful when symptoms point to audio, playback, power, protection, wiring, or board-level faults.

• HDMI, optical, or input switching problems
• disc loading, disc reading, or optical drive faults
• protection mode, shutdown, or amplifier board faults
• firmware-related operating issues
• wiring, connector, and speaker-output faults
• PCB-level failures that require voltage checks or signal tracing
• no power or intermittent startup

Technician Reference

This manual supports practical diagnosis on the Samsung HT-P50 by combining disassembly guidance with wiring verification, PCB identification, voltage measurements, exploded views, and circuit analysis. It is especially useful when a fault has to be traced from an external symptom back to a connector, board section, component area, or signal path.

Who Is This Manual For?

It is intended for professional technicians, repair shops, experienced DIY users, and electronics service specialists who need a long-term technical reference for accurate service work.

More Samsung Service Manuals

Browse more Samsung service manuals for related Samsung audio, home theater, receiver, and sound bar repair documentation.

Need Help Finding The Correct Manual?

Contact Zeus Manuals and we will help you identify the correct service manual.
