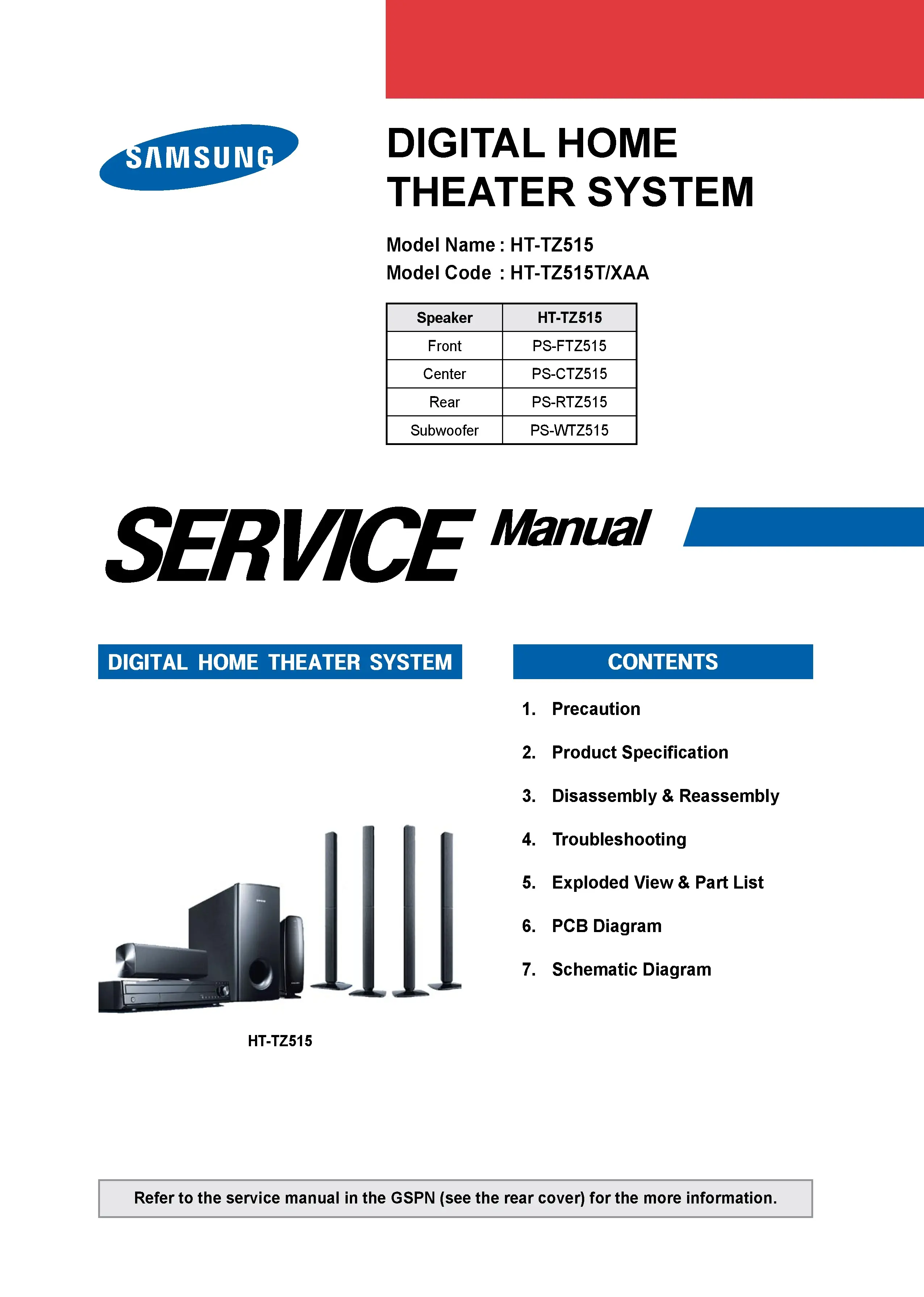

Samsung HT-TZ515T Digital Home Theater System Service Manual

Description

Samsung HT-TZ515T Digital Home Theater System Service Manual

For a Samsung HT-TZ515T Digital Home Theater System on the service bench, having the correct manual helps separate connector issues, board faults, and mechanical problems faster. It is intended for repair work where the correct diagrams, parts references, disassembly guidance, and troubleshooting flow matter.

Manual Specifications

• Brand: Samsung
• Model: HT-TZ515T
• Product Type: Digital Home Theater System
• Format: PDF in a ZIP file
• Pages: 106

Instant Download

The download is delivered as soon as checkout is complete, making it practical for active repair jobs and same-day diagnosis. There is no manual email handling or approval step; the file is ready from the completed order.

Manual Contents

• Precaution: covers the service precautions that should be checked before disassembly, measurement, or board handling.
• Product Specification: records the model-specific reference information needed before comparing symptoms or service results.
• Disassembly & Reassembly: shows the correct order for opening the unit and rebuilding it after repair without damaging assemblies.
• Troubleshooting: guides diagnosis of power, audio, disc, protection, connection, and system-control faults.
• Exploded View & Part List: links mechanical assemblies to part references so replacement parts can be identified confidently.
• PCB Diagram: helps locate boards, connectors, and component positions during voltage checks and signal tracing.
• Schematic Diagram: provides the circuit paths needed for deeper electronic diagnosis and board-level repair work.

Common Problems Covered

For the Samsung HT-TZ515T Digital Home Theater System, the troubleshooting material is useful when symptoms point to audio, playback, power, protection, wiring, or board-level faults.

• no power or intermittent startup
• no audio from one or more speaker channels
• distorted sound, low output, or channel imbalance
• HDMI, optical, or input switching problems
• disc loading, disc reading, or optical drive faults
• protection mode, shutdown, or amplifier board faults
• firmware-related operating issues

Technician Reference

This manual supports practical diagnosis on the Samsung HT-TZ515T by combining disassembly guidance with wiring verification, PCB identification, voltage measurements, exploded views, and circuit analysis. It is especially useful when a fault has to be traced from an external symptom back to a connector, board section, component area, or signal path.

Who Is This Manual For?

It is intended for professional technicians, repair shops, experienced DIY users, and electronics service specialists who need a long-term technical reference for accurate service work.
