Sharp AR-M550N / AR-M550U Digital Multifunctional Copier/Printer Service Manual & Technician Package

Description

The Sharp AR-M550N / AR-M550U technician package provides a broader repair resource than a standalone service manual. The factory manual is included together with the additional technical documentation available for this model family.

Manual Specifications

• Brand: Sharp
• Models: AR-M550N / AR-M550U
• Product Type: Digital Multifunctional Copier/Printer
• Package Format: ZIP
• Total Technical Documentation: 409 pages

Instant Download

The complete Sharp technician package is supplied as a ZIP for immediate access after purchase and can be retained as a permanent workshop reference.

Manual Contents

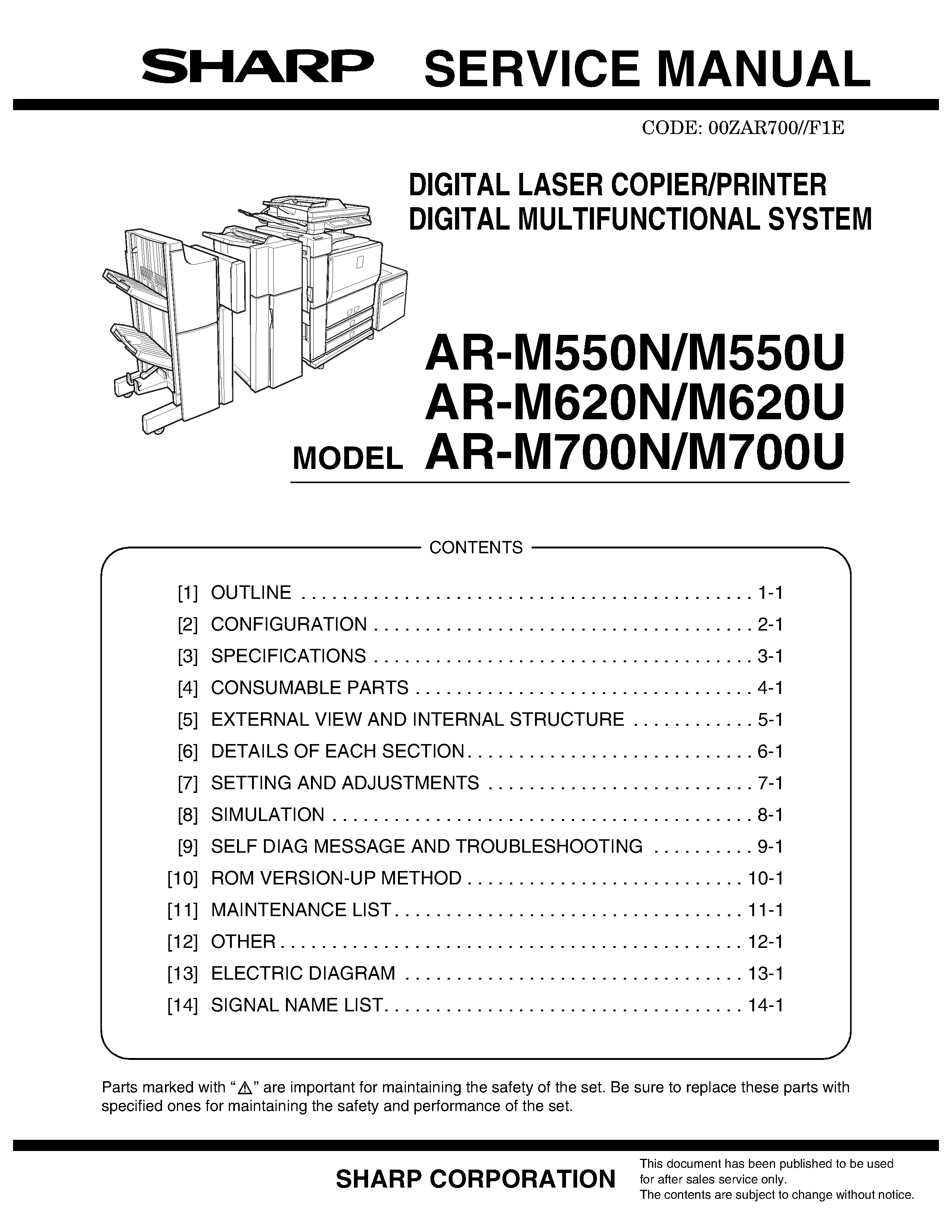

Main Service Manual: The original Sharp service manual covers the following service areas shown for this machine family:

• Outline: system and product overview.
• Configuration: machine and option configuration.
• Specifications: factory specifications.
• Consumable Parts: consumable reference.
• External View and Internal Structure: external and internal layout information.
• Details of Each Section: detailed service information for major machine sections.
• Setting and Adjustments: manufacturer adjustment procedures.
• Simulation: service simulation functions.
• Self Diagnosis and Troubleshooting: self-diagnostic messages and fault analysis.
• ROM Version-Up Method: firmware/ROM update procedure.
• Maintenance List: maintenance reference.
• Electrical Diagram: electrical circuit information.
• Signal Name List: signal identification reference.

Included Technician Documentation:

• Original Service Manual: the main Sharp factory technician service manual.
• Parts Catalog / Parts Documentation: complete parts identification and ordering reference included in the package.
• Circuit Diagrams: dedicated circuit-diagram documentation for electrical diagnosis.
• Installation Documentation: installation manuals and setup documentation included with the technician package.

Common Problems Covered

For the AR-M550N / AR-M550U, the documentation is useful when investigating jams, abnormal paper transport, image-quality defects, fusing faults, scanner or print-process problems, service-code conditions and intermittent machine operation. Simulations, adjustments and section-level service information help narrow the fault systematically.

Technician Reference

Because the documents belong to the Sharp technician set for these models, terminology and section references remain consistent across diagnosis, mechanical service, parts lookup and electrical work.

Who Is This Manual For?

Professional technicians can use the package as a workshop reference, while experienced owners can use the same manufacturer information to analyze the AR-M550N / AR-M550U as intended by Sharp and retain it for future troubleshooting.

More Brand Service Manuals

View more Sharp technical service documentation for additional Sharp printer and copier service documentation.

Need Help Finding The Correct Manual?

Need assistance with a Sharp manual search? Send us the model number and we will help identify the correct documentation.
