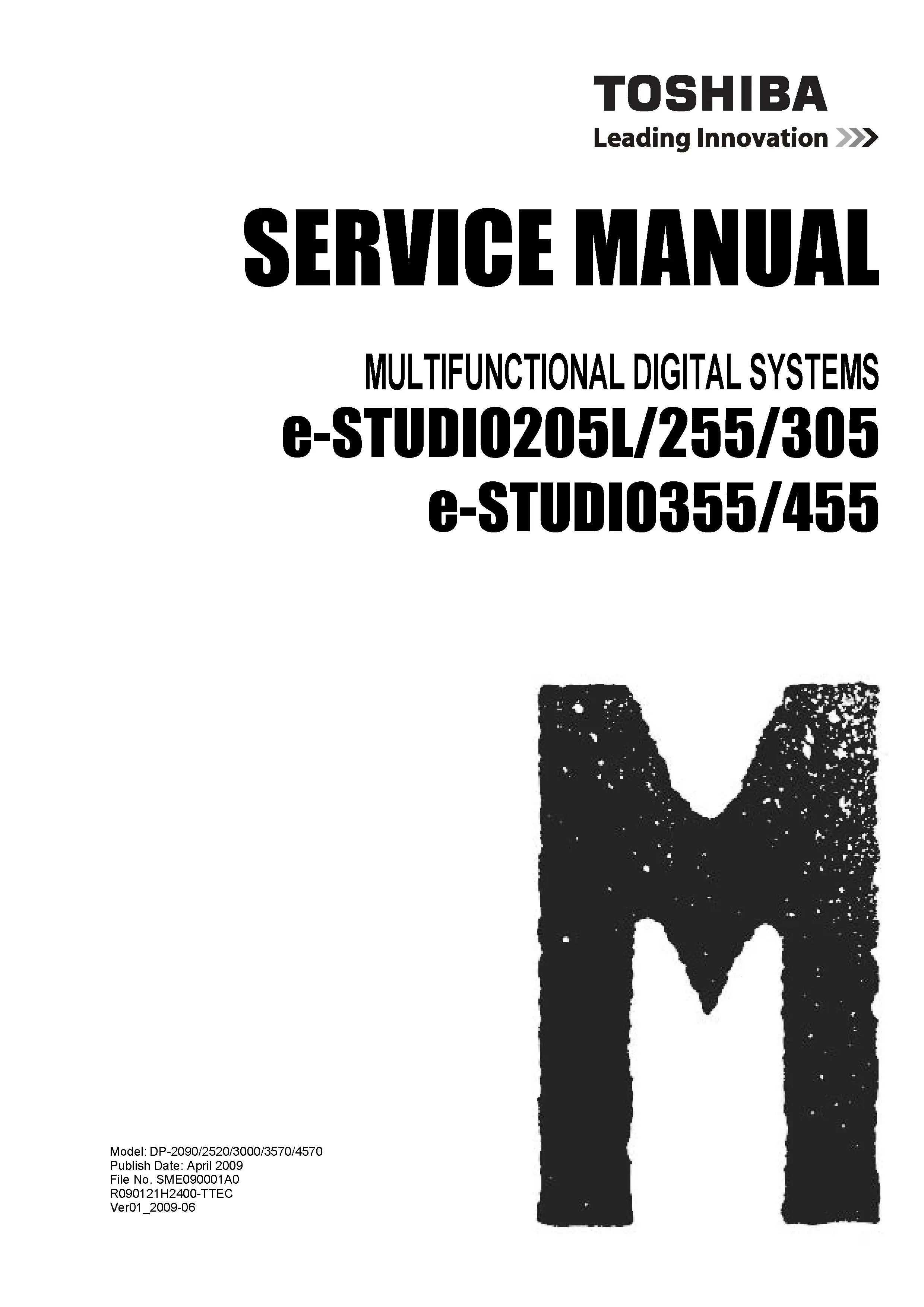

Toshiba e-STUDIO 205L/255/305/355/455 Printer Service Manual

Description

For technicians maintaining Toshiba e-STUDIO 205L/255/305/355/455 equipment, the service manual, handbook and parts catalog provide separate references within one downloadable package.

Manual Specifications

• Brand: Toshiba
• Product Type: Multifunction Printer/Copier
• Format: ZIP containing PDF documents
• Total Documentation Pages: 1110

Models Covered

e-STUDIO 205L, 255, 305, 355, 455.

Instant Download

After purchase, download the documentation immediately and retain a local copy with your equipment records.

Manual Contents

• Original Service Manual: The manufacturer service manual provides the detailed machine reference behind a copier repair. Toshiba e-STUDIO manuals typically describe the equipment specifications and layout, then explain the copy process, controls, scanner, image-processing stages and laser optics. They also document the drive and paper-feed systems, imaging assemblies, fuser, exit path and duplex operation, with technical references for the power supply and PC boards. These sections connect the reported symptom with the way the machine operates, helping the technician analyse the affected system and organise inspection or repair work.
• Service Handbook: The service handbook complements the detailed machine manual with a workshop-oriented diagnostic and maintenance reference. Recurring subjects in Toshiba e-STUDIO handbooks are fault codes, self-diagnostic modes, adjustments, scheduled maintenance and troubleshooting. Firmware-update information, power-supply references and harness-connection data are also common. Backup functions and PC-board or hard-drive replacement appear in several of the supplied reference handbooks. This distinction makes the handbook useful for following up a fault indication or reviewing service settings, while the main service manual explains the mechanical and electrical systems behind the problem.
• Parts List Catalog: The parts catalog provides a dedicated component identification reference. Consult its own model list when identifying a replacement part.

Common Problems Covered

Use the original Toshiba e-STUDIO 205L/255/305/355/455 repair documentation when analysing a service condition or planning a repair. The parts catalog adds a component identification reference alongside the technical document.

Technician Reference

Match the model on the equipment label to the relevant document before starting work. Keep the service manual and any companion references open together so that model coverage, document revisions and parts information can be compared during the same repair.

Who Is This Manual For?

Printer and copier technicians can retain these files as a workshop reference. Owners can also use the manufacturer documentation to analyse the machine, understand service terminology and discuss findings with a repair specialist. Keep the documents with the equipment records for future maintenance.
