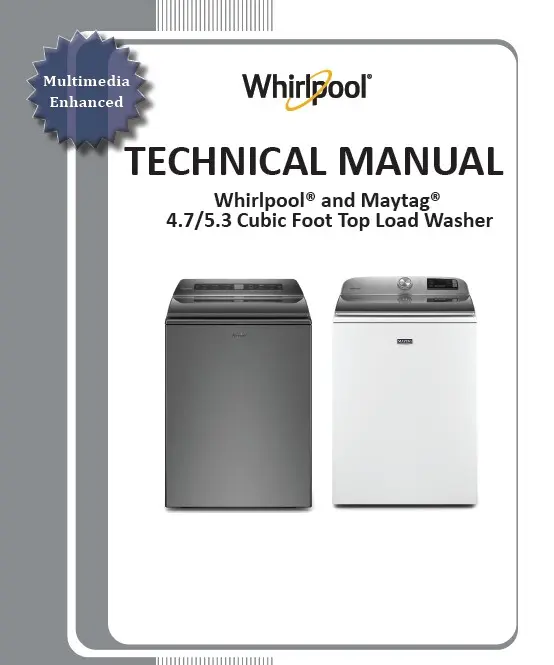

Whirlpool WTW8127LW Washer Service Manual

Description

This original manual was prepared for diagnosing and repairing the Whirlpool WTW8127LW. It connects displayed failures and operating symptoms with component activation, sensor feedback and targeted troubleshooting tests.

Manual Specifications

• Brand: Whirlpool
• Model: WTW8127LW
• Appliance Type: 4.7/5.3 Cubic Foot Top-Load Washer
• Format: PDF
• Pages: 87
• Language: English

Instant Download

Once the order is completed, the full service publication is ready to download. Pages can be searched, zoomed and stored locally for convenient workshop or field use.

Manual Contents

• General Information: Safety information, product specifications, washer features, model nomenclature and tech-sheet and serial-label locations establish the correct platform before testing begins.
• Diagnostics and Troubleshooting: Factory diagnostics explain how to enter service operation, command individual loads, observe sensor states, run the automatic cycle and connect stored failures with the next check.
• Wiring and Component Testing: Troubleshooting tests combine board pinouts, expected measurements and component locations for direct-drive and belt-driven washer systems, including connected functions.
• Component Access: Mechanical repair guidance separates direct-drive and belt-driven procedures so technicians can follow the access route that matches the washer configuration.

Common Problems Covered

Common WTW8127LW repairs include tracing inlet-valve problems, pressure or sensor feedback faults, drain-pump failures, motor and drive issues, shifter or gearcase complaints and ACU communication errors.

Technician Reference

The manual supports a disciplined sequence: verify the complaint, enter service mode, activate loads, observe sensor feedback, measure the circuit and open only the necessary area. The product tech sheet remains the exact wiring reference. Test results can be recorded and checked again after the repair is completed.

Who Is This Manual For?

Written for in-home service professionals, the manual is also useful to repair businesses and technically capable owners maintaining detailed documentation for the washer.
