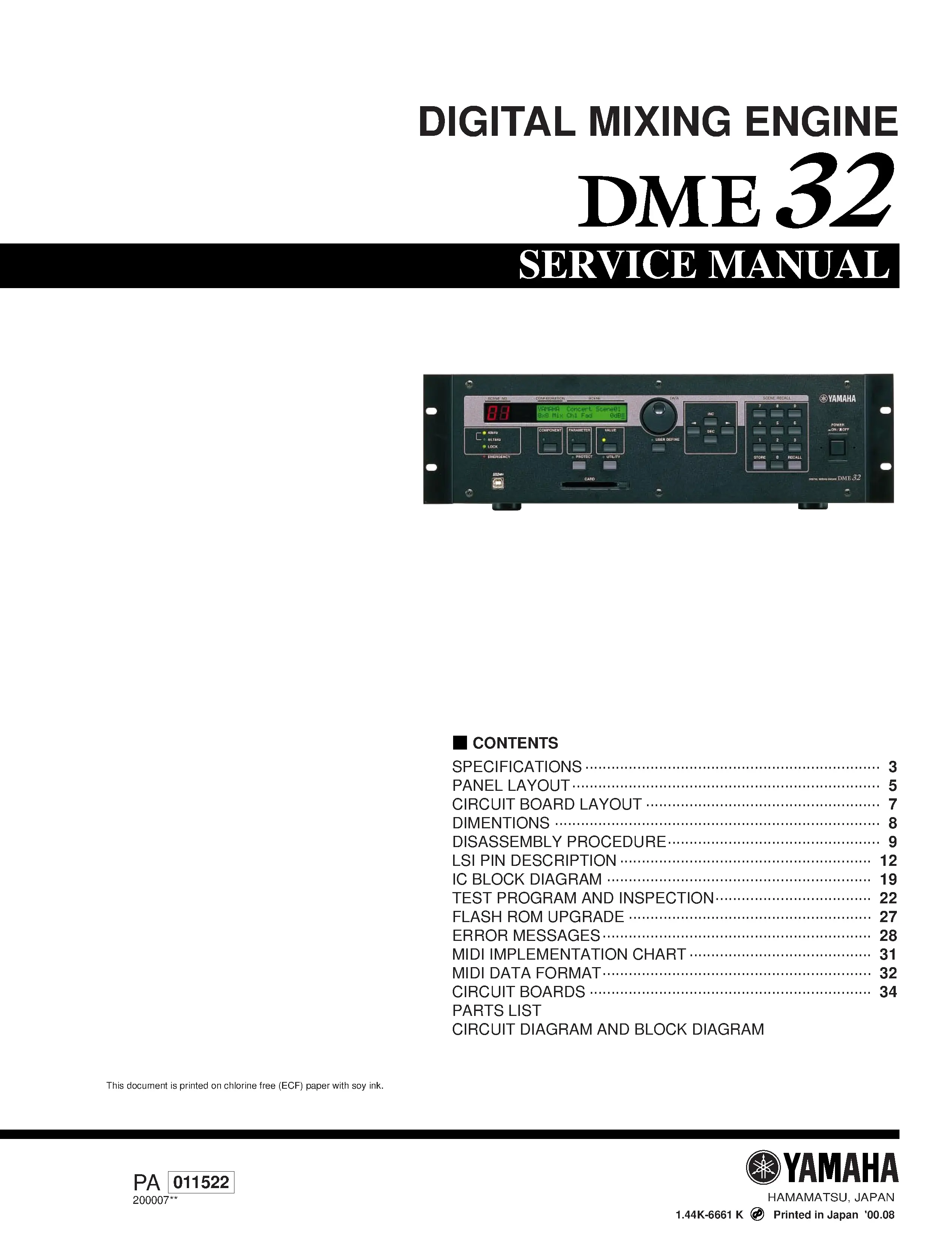

Yamaha DME32 Digital Mixing Engine Service Manual

Description

The Yamaha DME32 service manual is the manufacturer’s original technical repair documentation for this digital mixing engine. It gives a model-specific basis for fault tracing, disassembly and board-level service work.

Manual Specifications

• Brand: Yamaha
• Model: DME32
• Product Type: Digital Mixing Engine
• Format: PDF
• Pages: 79

Instant Download

The complete original service documentation is supplied digitally in PDF format, allowing immediate access after purchase and easy storage as a workshop or future troubleshooting reference.

Manual Contents

• Specifications: factory specifications.
• Panel Layout: panel and connector locations.
• Circuit Board Layout: internal board arrangement.
• Dimensions: physical dimensions.
• Disassembly Procedure: service access sequence.
• LSI Pin Description: LSI pin functions.
• IC Block Diagram: functional IC reference.
• Test Program and Inspection: diagnostic and inspection routines.
• Flash ROM Upgrade: firmware/ROM update procedure.
• Error Messages: error-message reference.
• MIDI Implementation Chart: MIDI implementation information.
• MIDI Data Format: MIDI data-format reference.
• Circuit Boards: board-level service information.
• Parts List: replacement-parts identification.
• Circuit Diagram and Block Diagram: complete circuit and functional diagrams.

Common Problems Covered

For the DME32, this service information is useful when investigating no-power conditions, missing or distorted audio, channel or fader problems, control-surface faults, display or startup issues, intermittent connectors and signal-path failures. The board layouts, circuit references and service checks help isolate the affected section before parts are replaced.

Technician Reference

During bench diagnosis, the DME32 manual allows the physical board layout, service procedures and circuit information to be used together. This makes it easier to move from a visible symptom to the correct assembly and verify signals or connections before completing a repair.

Who Is This Manual For?

This manual is intended for professional audio repair technicians, electronics workshops and experienced owners who want to troubleshoot and analyze the DME32 using Yamaha’s own service documentation. It also works as a long-term technical archive for future faults, board identification and component-location checks.
