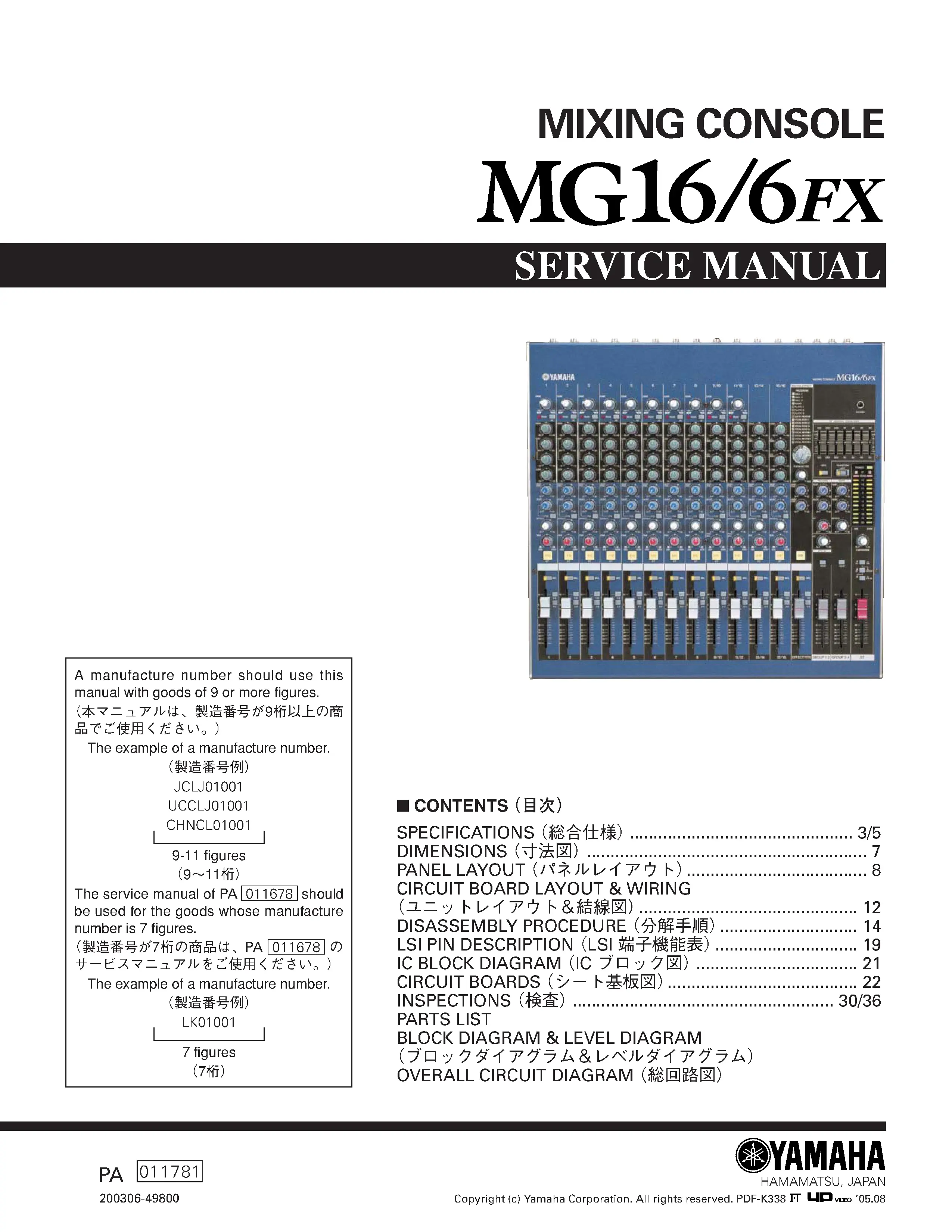

Yamaha MG16/6FX Mixing Console Service Manual

Description

For technicians working on the Yamaha MG16/6FX, this original factory service manual brings together the technical references used to inspect, test and repair the mixing console accurately.

Manual Specifications

• Brand: Yamaha
• Model: MG16/6FX
• Product Type: Mixing Console
• Format: PDF
• Pages: 93

Instant Download

The complete original service documentation is supplied digitally in PDF format, allowing immediate access after purchase and easy storage as a workshop or future troubleshooting reference.

Manual Contents

• Specifications: factory specifications.
• Dimensions: physical dimensions.
• Panel Layout: control and connector positions.
• Circuit Board Layout & Wiring: internal PCB and wiring arrangement.
• Disassembly Procedure: service access sequence.
• LSI Pin Description: LSI pin functions.
• IC Block Diagram: functional IC data.
• Circuit Boards: board-level service information.
• Inspections: inspection procedures.
• Parts List: replacement-parts identification.
• Block Diagram & Level Diagram: signal and level reference.
• Overall Circuit Diagram: complete circuit documentation.

Common Problems Covered

For the MG16/6FX, this service information is useful when investigating no-power conditions, missing or distorted audio, channel or fader problems, control-surface faults, display or startup issues, intermittent connectors and signal-path failures. The board layouts, circuit references and service checks help isolate the affected section before parts are replaced.

Technician Reference

During bench diagnosis, the MG16/6FX manual allows the physical board layout, service procedures and circuit information to be used together. This makes it easier to move from a visible symptom to the correct assembly and verify signals or connections before completing a repair.

Who Is This Manual For?

This manual is intended for professional audio repair technicians, electronics workshops and experienced owners who want to troubleshoot and analyze the MG16/6FX using Yamaha’s own service documentation. It also works as a long-term technical archive for future faults, board identification and component-location checks.

More Brand Service Manuals

View additional Yamaha mixer service manuals for other Yamaha mixing consoles, powered mixers, digital systems and professional audio equipment.

Need Help Finding The Correct Manual?

Can’t find the Yamaha model you need? Send us the model number and we will help identify the correct service documentation.
