Ariston FA3 540 H IX A Built-in Oven Service Manual

Description

Ariston FA3 540 H IX A Built-in Oven Service Manual

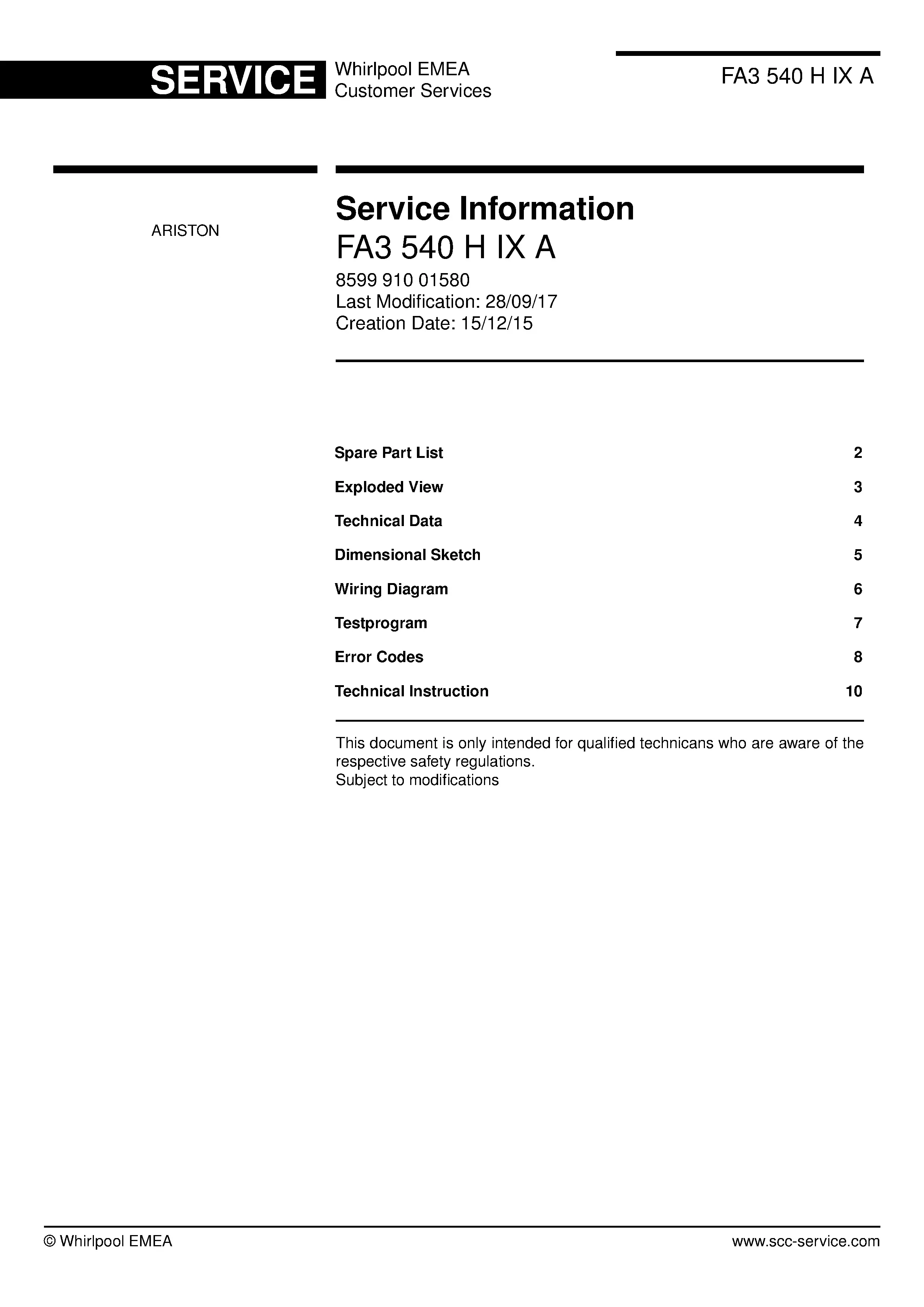

When an Ariston FA3 540 H IX A oven needs a closer technical inspection, this original service manual provides the factory reference for its assemblies and controls. Parts identification, diagnostic material and service instructions give the workshop a documented starting point.

Manual Specifications

• Brand: Ariston
• Model: FA3 540 H IX A
• Product Type: Built-in Oven
• Format: PDF
• Pages: 33
• Manufacturer Service Code: 859991001580

Instant Download

Download the PDF after purchase and keep the service reference available on your computer or tablet.

Manual Contents

• Spare Part List: Matches the oven components to their service references, helping distinguish assemblies before a replacement is ordered.
• Exploded View: Maps the assembly structure visually, helping the repairer connect a component position with its corresponding service reference.
• Technical Data: Sets out the documented electrical ratings and technical particulars used to check the appliance identification and service requirements.
• Dimensional Sketch: Shows the appliance dimensions in drawing form for checking the equipment layout and installation space.
• Wiring Diagram: Provides the electrical layout for locating connections and following the circuits associated with the reported symptom.
• Testprogram: Describes the manufacturer service test program used to assess the oven through its documented diagnostic sequence.
• Error Codes: Provides the error-code reference for connecting a displayed fault with the manufacturer’s diagnostic information.
• Technical Instruction: Provides the factory technical guidance to consult alongside the diagnostic sections and component references.

Common Problems Covered

For the Ariston FA3 540 H IX A, the error-code and test references support assessment of reported faults, control behavior and an oven that does not heat as expected. Use the documented codes and service checks alongside the wiring diagram to investigate the symptom; these sections provide technical evidence rather than a universal repair answer.

Technician Reference

Match the model designation and service code before choosing a replacement part. Closely named Ariston ovens should be checked against their own documentation; a similar title alone does not establish matching wiring or components.

Who Is This Manual For?

Qualified appliance technicians and repair workshops can use this reference during servicing. Owners can also understand the manufacturer’s intended fault-analysis approach and retain the PDF with the appliance records for future repairs.
