Sharp AR-M160 / AR-M205 Digital Copier Service Manual & Technician Package

Description

This download provides the Sharp AR-M160 / AR-M205 as a consolidated technician documentation package. Instead of only supplying the core service manual, it also contains the extra model-specific technical material included in the factory service set.

Manual Specifications

• Brand: Sharp
• Models: AR-M160 / AR-M205
• Product Type: Digital Copier
• Package Format: ZIP
• Total Technical Documentation: 157 pages

Instant Download

The complete Sharp technician package is supplied as a ZIP for immediate access after purchase and can be retained as a permanent workshop reference.

Manual Contents

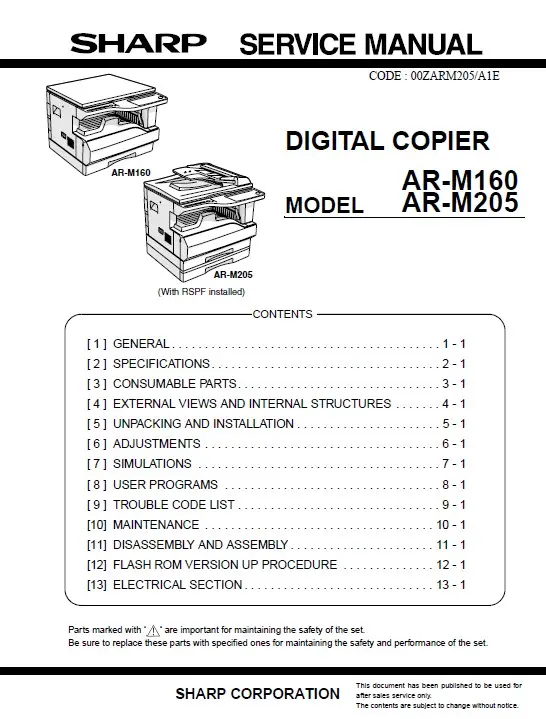

Main Service Manual: The original Sharp service manual covers the following service areas shown for this machine family:

• General: general machine and service information.
• Specifications: factory specifications for the covered copier/printer.
• Consumable Parts: service reference for consumable components.
• External Views and Internal Structures: machine layout and internal component locations.
• Unpacking and Installation: installation and setup information.
• Copy Process: copy-process operation and image-forming sequence.
• Operational Descriptions: functional descriptions of major machine operations.
• Disassembly and Assembly: step-by-step access to internal assemblies.
• Adjustments: manufacturer adjustment procedures.
• Simulation / Trouble Codes: service simulations and diagnostic trouble-code reference.
• Maintenance: maintenance procedures and service intervals.
• User Program: user-program and configuration reference.
• Electrical Section: electrical service information.

Included Technician Documentation:

• Original Service Manual: the main Sharp factory technician service manual.
• Parts Catalog / Parts Documentation: complete parts identification and ordering reference included in the package.
• Circuit Diagrams: dedicated circuit-diagram documentation for electrical diagnosis.

Common Problems Covered

Typical workshop use includes tracing paper-feed and transport faults, print or copy-quality issues, fuser problems, scanner or image-formation symptoms, sensor errors, maintenance alerts and diagnostic trouble codes. The service manual provides the structured machine information needed to identify the affected section before parts are replaced.

Technician Reference

The package is particularly useful when a repair goes beyond routine maintenance, because the main manual can be cross-checked against the included parts, circuit, PWB, option and bulletin documentation where available.

Who Is This Manual For?

Service shops can retain this package as a permanent model-specific archive for the AR-M160 / AR-M205, while experienced owners can use the original Sharp documentation to investigate symptoms before repair.
