Sharp MX-3050N / MX-3550N / MX-4050N / MX-3060N / MX-3560N / MX-4060N / MX-3070N / MX-3570N / MX-4070N Digital Full Color Multifunctional System Service Manual & Technician Package

Description

This download provides the Sharp MX-3050N / MX-3550N / MX-4050N / MX-3060N / MX-3560N / MX-4060N / MX-3070N / MX-3570N / MX-4070N as a consolidated technician documentation package. Instead of only supplying the core service manual, it also contains the extra model-specific technical material included in the factory service set.

Manual Specifications

• Brand: Sharp
• Models: MX-3050N / MX-3550N / MX-4050N / MX-3060N / MX-3560N / MX-4060N / MX-3070N / MX-3570N / MX-4070N
• Product Type: Digital Full Color Multifunctional System
• Package Format: ZIP
• Total Technical Documentation: 890 pages

Instant Download

The complete Sharp technician package is supplied as a ZIP for immediate access after purchase and can be retained as a permanent workshop reference.

Manual Contents

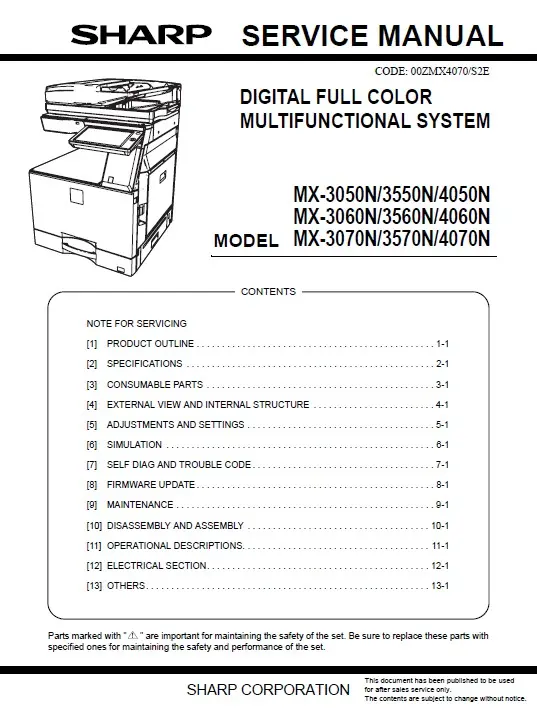

Main Service Manual: The original Sharp service manual covers the following service areas shown for this machine family:

• Note for Servicing: manufacturer service precautions.
• Product Outline: product architecture and system overview.
• Specifications: factory technical specifications.
• Consumable Parts: consumable component reference.
• External View and Internal Structure: machine layout and internal service locations.
• Adjustments and Settings: service adjustment and setup procedures.
• Simulation: service simulation and diagnostic modes.
• Self Diagnosis / Trouble Code: fault-code and self-diagnostic reference.
• Firmware Update: firmware update procedures.
• Maintenance: maintenance procedures.
• Disassembly and Assembly: access and reassembly instructions.
• Operational Descriptions: functional operation of major machine systems.
• Electrical Section: electrical service information.

Included Technician Documentation:

• Parts Catalog / Parts Documentation: complete parts identification and ordering reference included in the package.
• PWB Parts Guide: board-level component parts reference.
• Additional Technical Documents: additional model-specific technical references supplied in the ZIP package.

Common Problems Covered

Typical workshop use includes tracing paper-feed and transport faults, print or copy-quality issues, fuser problems, scanner or image-formation symptoms, sensor errors, maintenance alerts and diagnostic trouble codes. The service manual provides the structured machine information needed to identify the affected section before parts are replaced.

Technician Reference

The package is particularly useful when a repair goes beyond routine maintenance, because the main manual can be cross-checked against the included parts, circuit, PWB, option and bulletin documentation where available.

Who Is This Manual For?

Service shops can retain this package as a permanent model-specific archive for the MX-3050N / MX-3550N / MX-4050N / MX-3060N / MX-3560N / MX-4060N / MX-3070N / MX-3570N / MX-4070N, while experienced owners can use the original Sharp documentation to investigate symptoms before repair.

More Brand Service Manuals

Find more Sharp copier and printer service manuals for additional Sharp printer and copier service documentation.

Need Help Finding The Correct Manual?

Have a Sharp model not listed here? Send us the model number and we will help identify the correct documentation.
