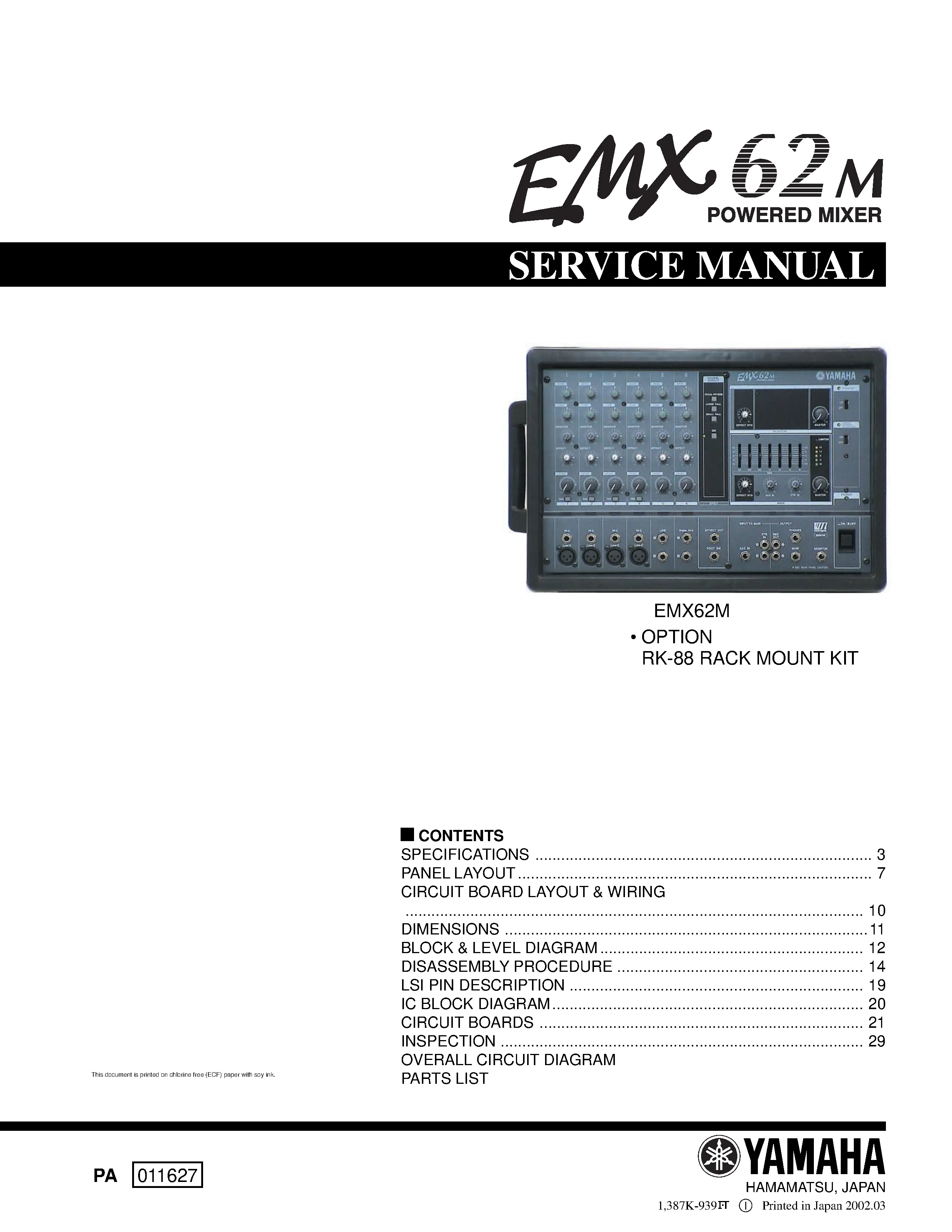

Yamaha EMX62M Powered Mixer Service Manual

Description

This official Yamaha service manual provides the original manufacturer repair documentation for the EMX62M powered mixer, with model-specific technical information for diagnosis, internal inspection and professional servicing.

Manual Specifications

• Brand: Yamaha
• Model: EMX62M
• Product Type: Powered Mixer
• Format: PDF
• Pages: 63

Instant Download

The complete original service documentation is supplied digitally in PDF format, allowing immediate access after purchase and easy storage as a workshop or future troubleshooting reference.

Manual Contents

• Specifications: factory specifications.
• Panel Layout: panel/control arrangement.
• Circuit Board Layout & Wiring: internal PCB and wiring layout.
• Dimensions: physical dimensions.
• Block & Level Diagram: functional block and level reference.
• Disassembly Procedure: service access sequence.
• LSI Pin Description: LSI pin functions.
• IC Block Diagram: IC functional data.
• Circuit Boards: board-level circuit information.
• Inspections: inspection procedures.
• Parts List: replacement parts.
• Overall Circuit Diagram: complete circuit reference.

Common Problems Covered

When the EMX62M develops audio loss, abnormal levels, non-responsive controls, startup problems or intermittent operation, the original service data gives a structured route from the external symptom to the internal assembly, connector or circuit that requires further testing.

Technician Reference

As original Yamaha technical documentation, this manual is particularly useful when a repair reaches board level. Component areas, connectors, service tests and circuit sections can be cross-referenced without relying on generic mixer information.

Who Is This Manual For?

The service information suits repair professionals and owners comfortable with electronic troubleshooting. For the EMX62M, it provides a dependable record of internal layouts, service checks and circuit information that can be revisited whenever another fault occurs.
