Philips BDP 2180X Blu Ray Player Service Manual

Description

Philips BDP 2180X Blu Ray Player Service Manual

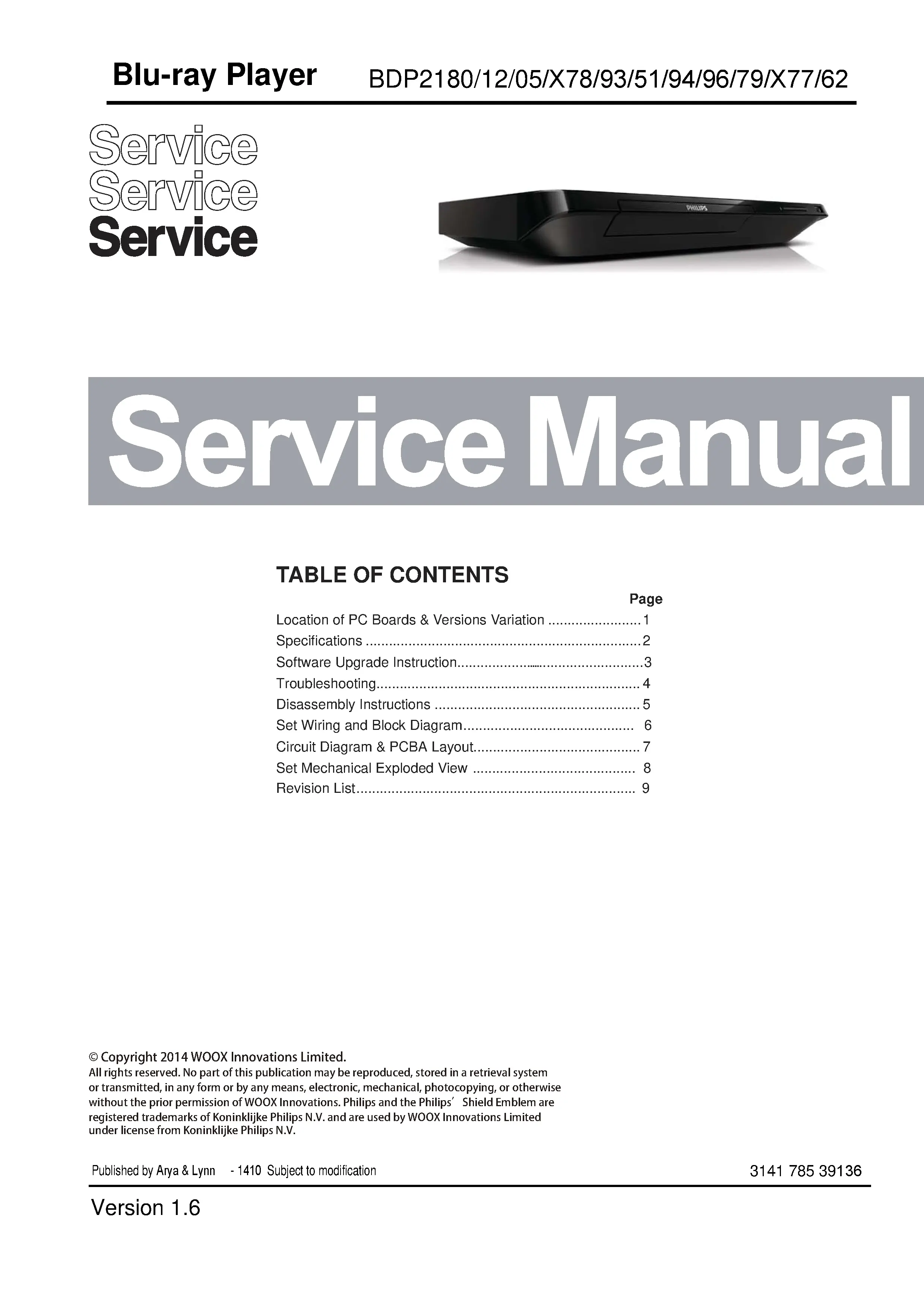

This Philips BDP 2180X service manual is written around the actual blu ray player documentation, so the repair path follows the same structure Philips supplied to service technicians. The documentation is based on the Philips service material for BDP2180/12/05/X78/93/51/94/96/79/X77/62, BDP2180/12/05/62, BDP2180/93, BDP2180X/78, with the device type, contents and service terminology checked against the supplied cover or manual front matter.

Manual Specifications

• Brand: Philips
• Model: BDP 2180X
• Model covered: BDP2180/12/05/X78/93/51/94/96/79/X77/62, BDP2180/12/05/62, BDP2180/93, BDP2180X/78
• Product type: Blu Ray Player
• Format: ZIP file
• Pages: 32

Instant Download

After checkout, the Philips BDP 2180X service manual is available as a digital download so you can start using the repair information straight away. The file is supplied in the format listed above and can be kept as a workshop reference for future diagnostics.

Manual Contents

• Location of PC Boards & Versions Variation: shows board placement and the version matrix for the covered market variants.
• Specifications: summarises the main playback, output and system details.
• Safety Instruction: covers the precautions that should be checked before repair work.
• Software Upgrade Instruction: explains how firmware servicing is handled for the unit.
• Troubleshooting: guides diagnosis of startup, playback, output and control faults.
• Disassembly Instructions: shows the order for opening the cabinet and reaching the internal modules.
• Set Block & Wiring Diagram: connects board-level signal flow with internal wiring paths.
• Circuit Diagram & PCBA Layout: supports electronic tracing on the main and related boards.
• Set Mechanical Exploded View: gives the mechanical assembly reference for replacement work.
• Revision List: records the service manual revision state.

Common Problems Covered

The troubleshooting material is useful for playback failures, intermittent disc recognition, front-control complaints, missing audio or video output, software update problems and internal wiring checks. The Philips BDP 2180X documentation gives the diagnostic context for this blu ray player, so the checks stay tied to the actual circuit, wiring and mechanism layout instead of a generic player repair guide.

Technician Reference

For workshop use, the Philips BDP 2180X manual works well as a bench reference because the contents move from identification and safety into practical disassembly, diagnosis and board documentation.

Who Is This Manual For?

It is intended for repair shops, electronics technicians, refurbishers and owners who maintain Philips disc players with proper service data instead of guesswork.

More Philips Service Manuals

View additional Philips Blu Ray DVD service manuals for related players, recorders and model variants.

Need Help Finding The Correct Manual?

Not sure whether this is the right file? Contact us with the model code and we will help you check it.
